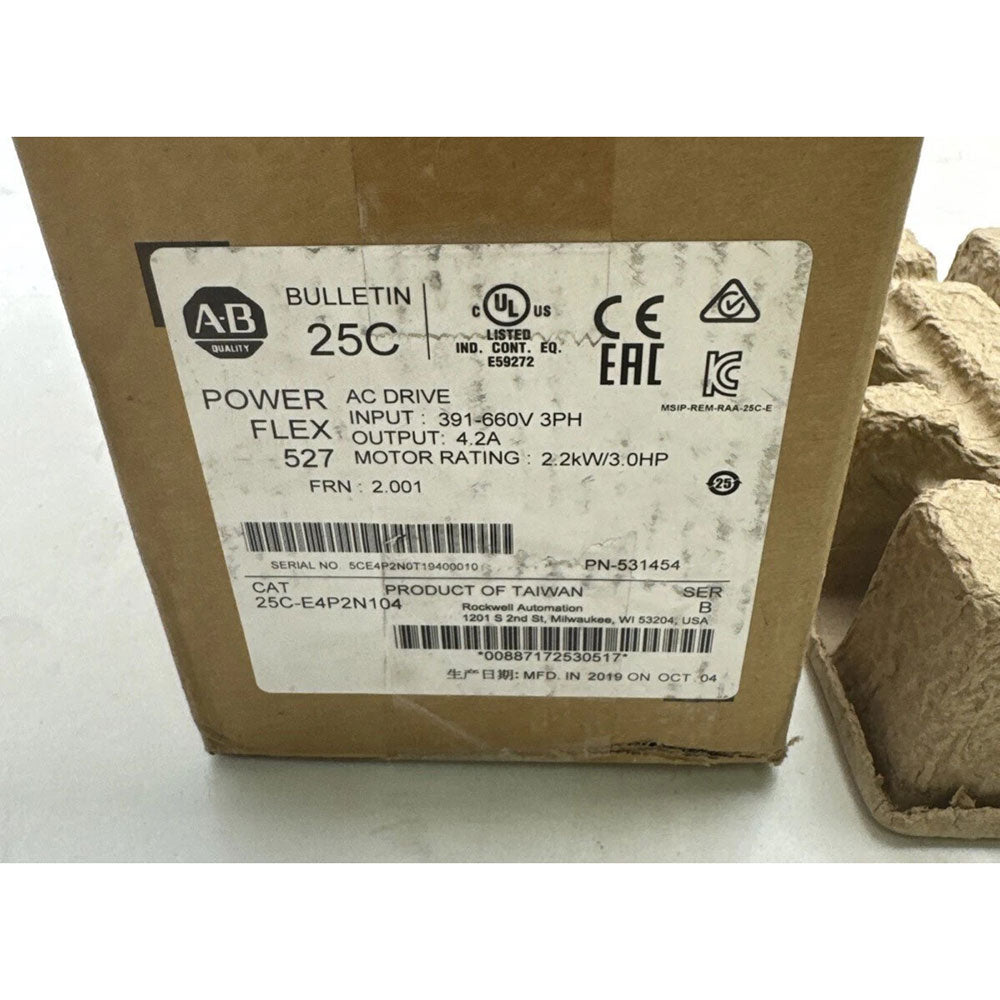

The Allen-Bradley 25C-E4P2N104 drive is an adjustable frequency drive that can control the speed and torque of motors in PLC systems. It is available through the Allen-Bradley/Rockwell Automation PowerFlex 527 product line. The 25C-E4P2N104 adjustable frequency drive is designed to operate with 3-phase input voltage ratings that include 525 to 600 Volts AC input voltage and 0 to 575 Volts AC output voltage. Its normal and heavy-duty output power ratings are both 3 Horsepower or 2.2 kilowatts. The 25C-E4P2N104 adjustable frequency drive has a Size A frame and an Ethernet/IP communication port.
Technical specifications for 25C-E4P2N104
| Manufacturer | Allen Bradley |
|---|---|
| Category | Drives |
| Product Line | PowerFlex 527 |
| Part Number | 25C-E4P2N104 |
| Weight | 3.00 lbs (1.36 kg) |
| Voltage Class | 600 AC Volts |
| Output Current | 4.2 Amperes |
| Frame Size | A |
| Enclosure Type | IP20 NEMA (Open) |
| EMC Filtering Option | No |
| Phase Count | Three |
| Horsepower | 3 |
| Communication | EtherNet IP (Dual Port) |
Description
The Allen-Bradley 25C-E4P2N104 is one of the Power Flex 527 drives and it runs on 600V AC power, with 4.2 A and 3 HP of output. It is designed for industrial environments with its IP20 NEMA (open) enclosure and its compact frame. This product can manage the simple speed regulation of industrial motors that require minimal manual reconfiguration. Its unique design makes it possible to install and configure other devices, reducing the necessary inventory of spare parts.
The built-in safety features of the 25C-E4P2N104 drive ensure the safety of the data when working via the Ethernet or the IP network. It provides the user with easy-to-use software and tools that make the design simple. The 25C-E4P2N104 is able to withstand temperatures of up to 50°C (122°F). With the control module fan and the kit current derating feature, it can be stored in areas with temperatures of up to 70°C (158°F).
To ensure maximum performance and capability, the 25C-E4P2N104 features an Ethernet /IP Dual port that aids in enhancing efficient communication. With its 4.2 A output current, it is ideal for use in an industrial setting, since it has no EMC filtering. These drives require minimal reconfiguration and they utilize the Logix PACs with the dual Ethernet network for rapid communication. The safe-torque off support means that they are safe. The 25C-E4P2N104 is a reliable part because it comes with several power ratings ranging from 0.4-22 kW (0.5-30 HP). Its incorporation of the best technology on the market ensure that it will give users the best possible performance.
