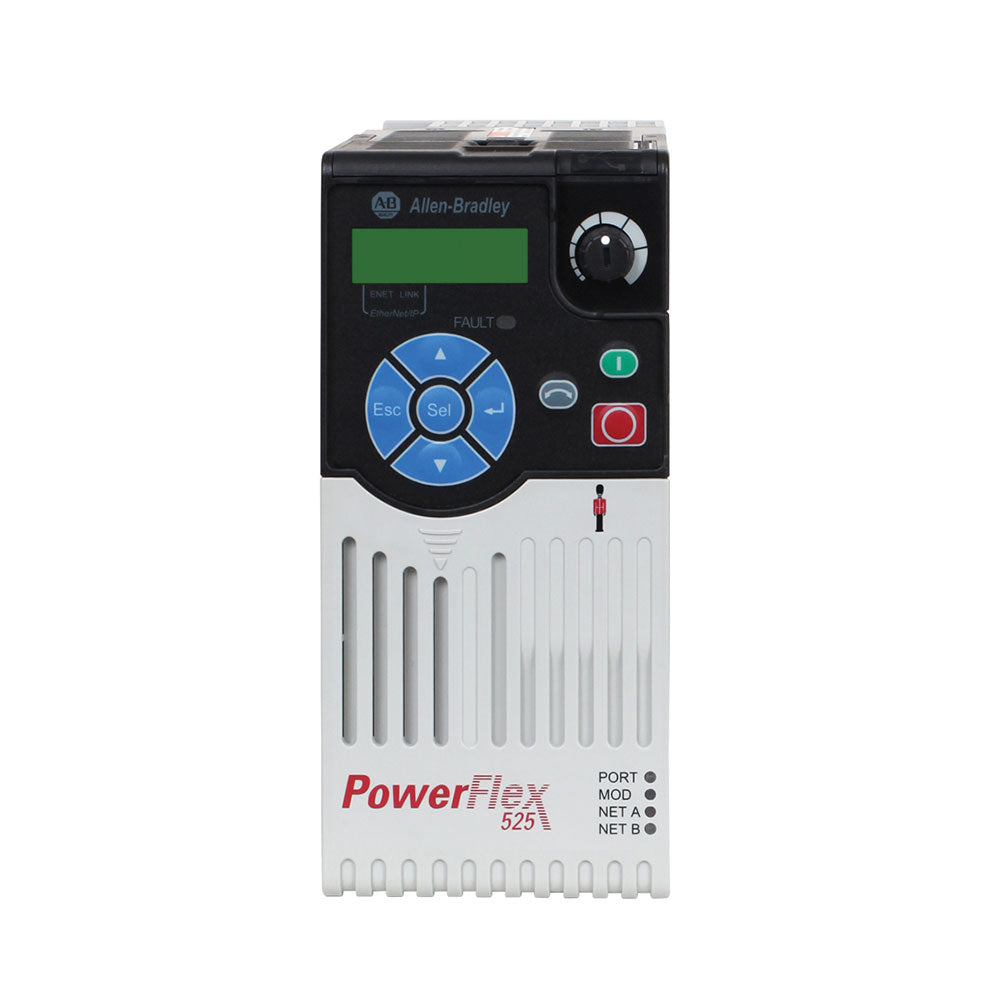

The Allen-Bradley 25B-D6P0N104 is a PowerFlex 525 Variable Frequency Drive (VFD). This VFD is powered with an input voltage range of 323-528VAC, 3-phase with applicable motor output 6.0 A and Power 2.2 kW (3.0 HP) for normal duty and Heavy duty operation.
Technical specifications for 25B-D6P0N104
| Manufacturer | Allen Bradley |
|---|---|
| Category | Drives |
| Product Line | PowerFlex 525 |
| Part Number | 25B-D6P0N104 |
| UPC | 884951885899 |
| Weight | 3.00 lbs (1.36 kg) |
| Output Current | 6.0 A |
| Product Family | PowerFlex 40P |
| Input Voltage | 323-528 VAC |
| Input Phase | 3-Phase |
| Input Current | 7.5 A |
| Output Voltage | 0-460VAC |
| Output Power | 2.2kW (3.0 HP) |
| I/O | Discrete Inputs: Seven (7) Sink / Source Discrete Outputs: One (1) N.O.; One (1) N.C. Contacts; Two (2) Digital / Optocoupler Analog Input: Two (2) Analog Input 0-10VDC; 0- 20mA Analog Output: One (1) Analog Input 0-10VDC; 0- 20mA |
| Installation | Panel Mount / DIN Rail |
| Enclosure Rating | IP20 / NEMA UL Type Open |
| Built-in communication port | Ethernet I/P |
| Optional communication protocols | Dual Ethernet I/P; DeviceNet; ProfiBus DP |
| Series | PowerFlex 525 Drive |
| Voltage | 3-Phase, 480 Volts AC |
| Enclosure Type | IP20 NEMA / Open Type |
| Interface Module | Standard |
| Frame Size | Frame A |
| EMC Filtering Options | No Filter |
| UNSPSC | 39122001 |
Description
The 25B-D6P0N104 drive is a PowerFlex 525 series drive that has been designed and manufactured by Allen-Bradley, and it has 480 Volts AC input voltage and it works with a 50/60 Hertz frequency. It is a 3-phase drive and supports panel and DIN rail mounting. It comes with an integrated IGBT braking system, and the rated power output of 3 Horsepower with a 6 Amps output current. It has a NEMA UL Frame A type enclosure that is rated IP20. The 25B-D6P0N104 comes with a simple interface module and a power button to start and shut it down.
The 25B-D6P0N104 drive also has a backlit LCD screen to display various bits of information regarding its status. The module is 6.77 inches high and 5.98 inches wide with a fixed terminal connection. It comes with a default Ethernet port for communication purposes. The 25B-D6P0N104 comes with different motor control options. It has the sensorless vector control method as well as the closed loop control method. This AC series drive is a standard industrial solution for factories due to its reliability and robustness. It is used to control fans, pumps, conveyors, and mixer devices. It is built to perform in a high-temperature environment. It has passed many standard certifications that are required to meet the industry standards, including the UL, ROHS, ACS156, and the KCC certifications.
The 25B-D6P0N104 may be used in material handling, fan and pump, lifting and other similar applications. This drive requires an input voltage range of 323-528VAC, 3-phase with applicable motor output 6.0 Amperes and Power of 2.2 kW (3.0 HP) for normal duty and Heavy-duty operation. It comes with an integral Ethernet I/P communication interface, allowing the drive to communicate with Ethernet capable controllers, particularly ControlLogix and CompactLogix controllers.
Additional communication adapters may also be attached to the drive such as Dual port EtherNet/IP option card, enabling support for Device Level Ring (DLR) topology, which is a Fault Tolerant connection, increasing the drive’s availability and accessibity. It also supports DeviceNet and Profibus communication interfaces, which are serial based protocols with high-speed communication capability.
For installation of the drive, this drive may be snapped onto a DIN rail or directly screwed to an enclosure subpanel as the 25B-D6P0N104 features a Frame A body with enclosure rating of IP20 / NEMA Open Type.
