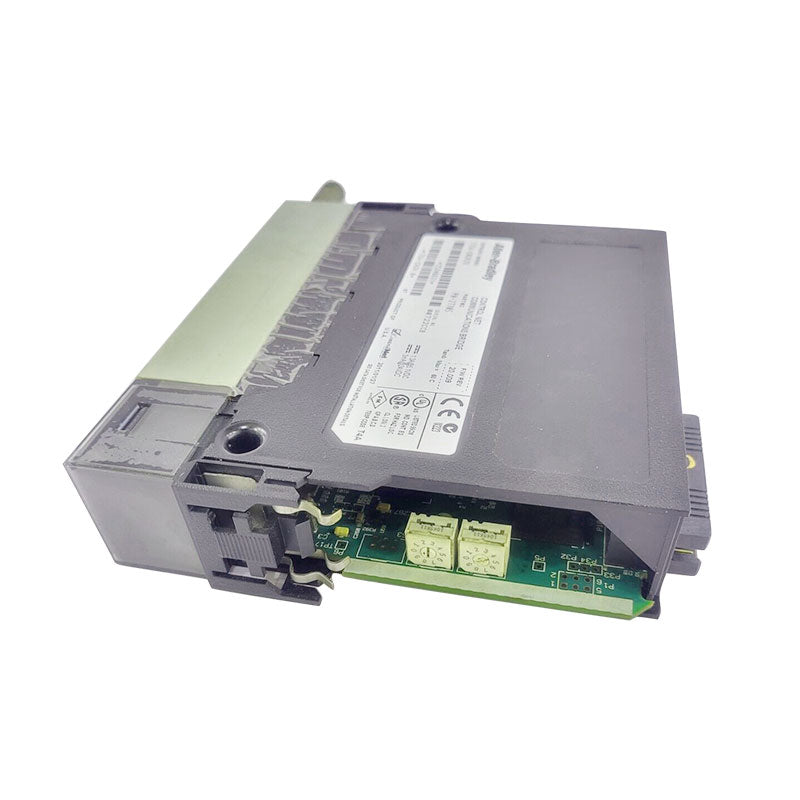

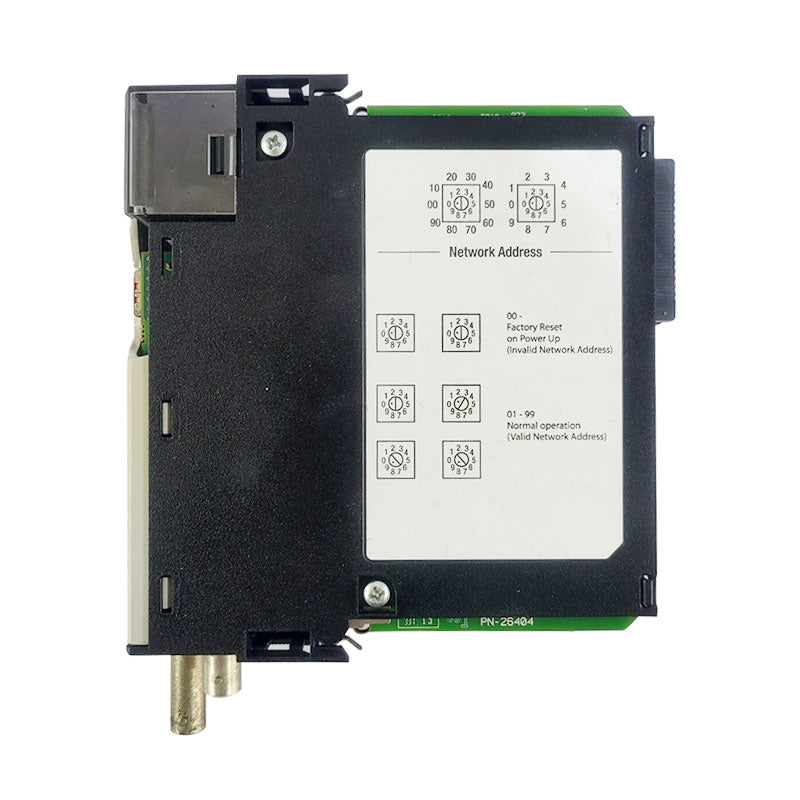

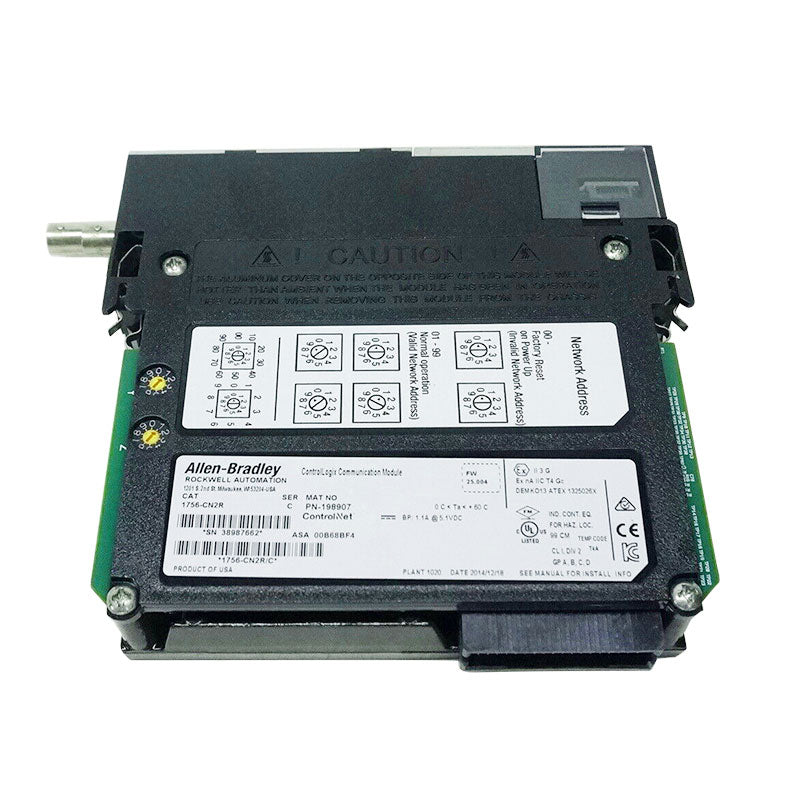

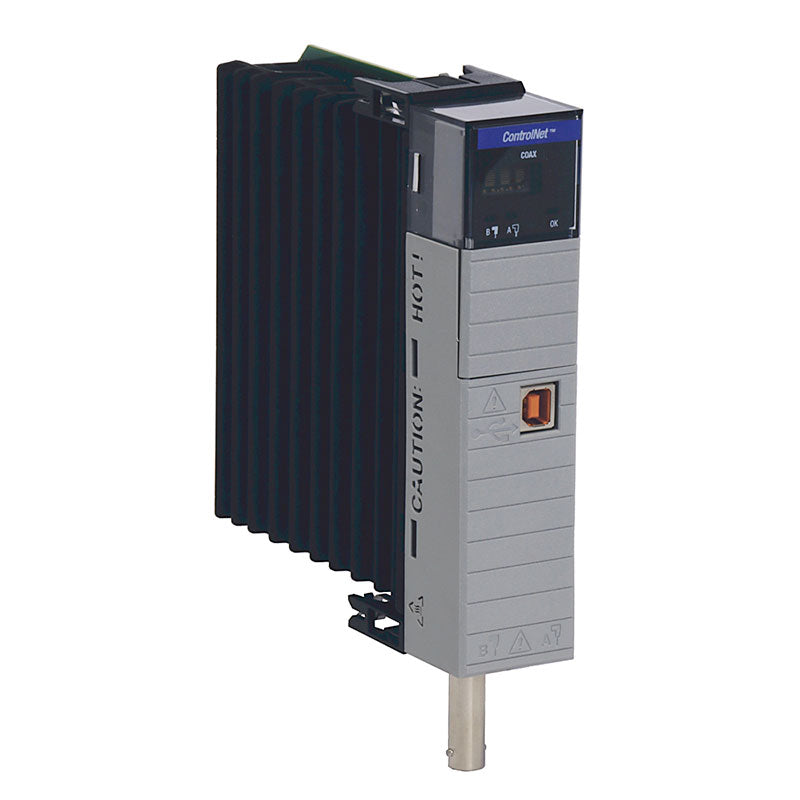

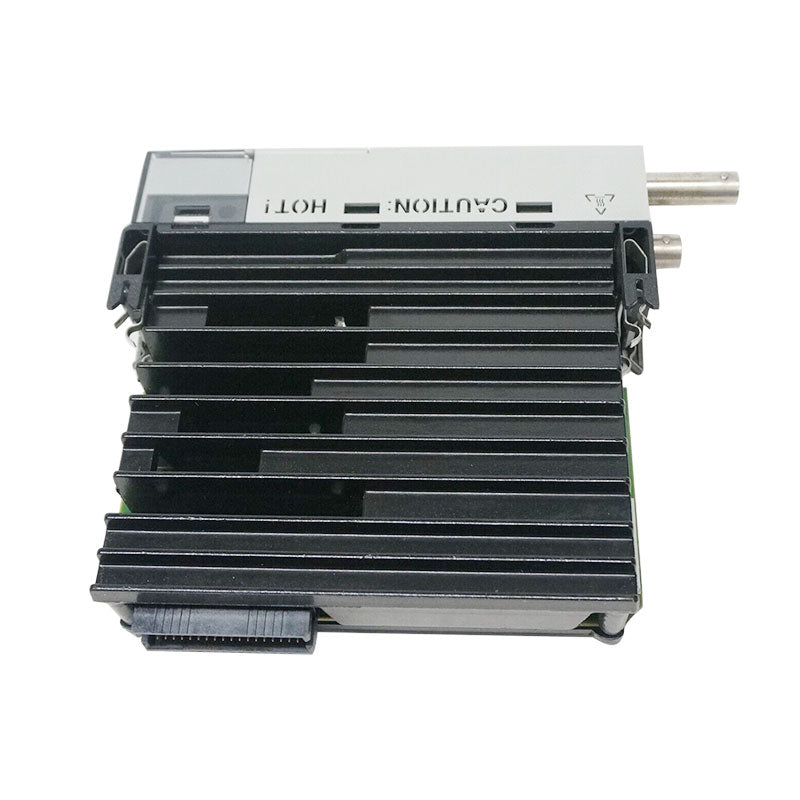

1756-CN2R Allen-Bradley | ControlLogix Communication Module

1756-CN2R Allen-Bradley | ControlLogix Communication Module

Regular price $1,392.00 USD
Regular price $1,809.00 USD Sale price $1,392.00 USD
Sale Sold out
Tax included. Shipping calculated at checkout.

  Technical Specifications for 1756-CN2R

Manufacturer Rockwell Automation
Brand Allen-Bradley
Manufacturer: Rockwell Automation
Manufacturer Rockwell Automation
Part Number/Catalog No. 1756-CN2R
Part Number/Catalog No.
Brand: Allen-Bradley
Series ControlLogix
Product Description: ControlNet communication module
Module Type Bridge Module
1756-CN2R Series
Maximum Nodes 99
Part Number: 1756-CN2R
ControlLogix Module Type
Maximum Connections 131
ControlNet communication module Location
Chassis Backplane Current (5.1 Volts DC)
Communication Port: Two (2) ControlNet; One (1) USB
ControlNet Communication Rate 5 megabits-second
1300 mA Backplane Current (24 Volts DC)
ControlNet Data Transfer speed: 5 Mbps
Configuration Redundant
Input Current 1300 milliamps at 5.1 Volts DC, 3 milliamps at 24 Volts DC
3 mA Isolation Voltage
USB Data Transfer rate: 12 Mbps
30 Volts Continuous Power Dissipation (Max)
Mounting: Any 1756 Chassis
Thermal Dissipation 22.9 BTU per Hour
Compatible Power Supply (Standard): 1756-PA72/C, 1756-PA75/B, 1756-PB72/C, 1756-PB75/B, 1756-PC75/B, 1756-PH75/B
6.7 Watts Enclosure
Power Dissipation 6.7 Watts
Open Type Thermal Dissipation
Compatible Power Supply (Redundant): 1756-PA75R, 1756-PB75R, 1756-PSCA2
Slot width 1
22.9 BTU/hr Communication Cable
Weight 0.64 pounds (0.293 kilograms)
Compatible Chassis: 1756-A4, 1756-A7, 1756-A10, 1756-A13, 1756-A17
1786-RG6 quad shield RG6 coaxial cable Dimensions
UPC 10612598324436
Backplane current: 1.3 A at 5.1 VDC; 3 mA at 24VDC
5.51 x 4.41 x 5.71 inches Operating Temperature
Power Dissipation: 6.7 W
32-140 Fahrenheit (0-60 Celsius) Chassis
Thermal dissipation 21.28 BTU/hr
1756-A4, 1756-A7, 1756-A10, 1756-A13, 1756-A17 Power supply, standard
No. of Logix connections: 128
Max. no. of connections: 131
1756-PA72/C, 1756-PA75/B, 1756-PB72/C, 1756-PB75/B, 1756-PC75/B, 1756-PH75/B Power supply, redundant
Maximum number of nodes: 99
1756-PA75R, 1756-PB75R, 1756-PSCA2

About 1756-CN2R

The Allen-Bradley 1756-CN2R is a ControlLogix communication module that is part of the Logix controller platform. This module is primarily used for establishing connectivity in redundant ControlNet network topology as it features Two (2) BNC ControlNet ports. This module occupies a single sot of the cassis and may be installed to any available slot of standard chassis such as 1756-A4, 1756-A7, 1756-A10, 1756-A13, 1756-A17 and used with standard ControlLogix power supply particularly 1756-PA72/C, 1756-PA75/B, 1756-PB72/C, 1756-PB75/B, 1756-PC75/B, 1756-PH75/B and redundant power supply such as 1756-PA75R, 1756-PB75R, 1756-PSCA2. ControlNet network is a multi-node communication network utilizing a coaxial cable trunk line with nodes connecting at the trunk line using drop cables. This particular module uses 1786-RG6 quad shield RG6 coaxial cable for connection to the network. Up to 5 Mbps transmission speed is supported by the 1756-CN2R. Aside from the dual ControlNet ports, the 1756-CN2R also comes with One (1) USB port that supports a 12 Mbps transmission rate at full speed. It cannot be used for data communication purposes. This module is applicable for implementing Distributed I/O topology as it can cover up to 1000 meters per segment which can be easily extended with the use of repeaters as signal boosters for ControlNet segments longer than 1000 meters. It can be also to communicate with Human Machine Interface (HMI) devices and Supervisory Control and Data Acquisition (SCADA) systems. It supports up to 128 Logix connections and a maximum of 131 communication connections.

The 1756-CN2R ControlNet Connections per Communication Module by Allen-Bradley is a communication module attached to a slot on the ControlLogix Chassis that provides a ControlNet Network through the Common Industrial Protocol (CIP) and a peer-to-peer network for enhanced functions. It has a redundant configuration type and communicates at a rate of 5Mbps over a maximum of 99 nodes. The 1756-CN2R has a maximum of 128 Logix communication connections. It has a draw current of 1300mA at 5.1V DC and one of 3mA at 24V DC and it dissipates 6.6W heat at 22.5 BTU/hr. It has 30V DC isolation voltage with basic insulation tested at 500V for a minute between the ControlNet and the system. The 1756-CN2R has double ControlNet BNC, a ControlNet RJ45, and a single USB 1.1 port for connection and communication with other devices. It comes in an open enclosure type and is designated at the T4 IEC temperature code and at the T4A North American Temperature code. The 1756-CN2R operational temperature ranges between 0 and 60 deg. C (32 and 140 deg. F) at 5-95% non-condensing relative humidity, and it has an operational shock rate of 30G and a maximum vibration of 2G at 10-500Hz.

FAQ for 1756-CN2R

1. How many ControlNet ports does the 1756-CN2R have?


The 1756-CN2R has dual ControlNet communication interface.

2. What is the appropriate ControlNet cable used by the 1756-CN2R?


The 1756-CN2R requires use of 1786-RG6 quad shield RG6 coaxial cable.

3. What are compatible chassis for installations of the 1756-CN2R?


Compatible ControlLogix chassis are 1756-A4, 1756-A7, 1756-A10, 1756-A13 and 1756-A17.

1. Does the 1756-CN2R support redundant ControlNet topology?


Yes. The 1756-CN2R support redundant ControlNet network.

2. How many slots f the chassis does this module occupy?


The 1756-CN2R is a single slot module.

3. What is the maximum number of ControlLogix connection does this module support?


Up to 128 Logix connections is supported by the 1756-CN2R.

Technical Description of 1756-CN2R

The Allen-Bradley 1756-CN2R is a ControlNet communication module that is part of the ControlLogix product family. This module has redundant ControlNet ports that supports implementation of linear or redundant ControlNet network topology. Each port is capable of up to 5 mbps transmission speed, up to 128 logix communication connections, 131 connections and up to 99 nodes. This module is installed to a local or remotely located 1756 ControlLogix chassis and draws backplane current amounting to 1300 mA @ 5VDC and 3 mA @ 24VDC.
