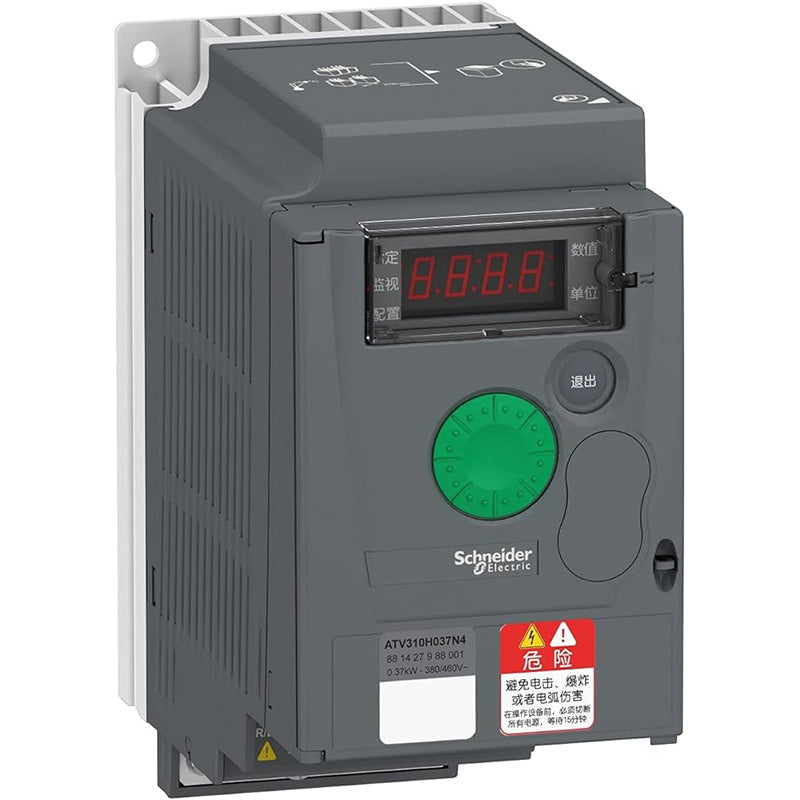

| Product destination |
Asynchronous motors |
| Quantity per set |
Set of 1 |
| EMC filter |
Without EMC filter |
| Supply frequency |
50/60 Hz +/- 5 % |
| communication port protocol |
Modbus |

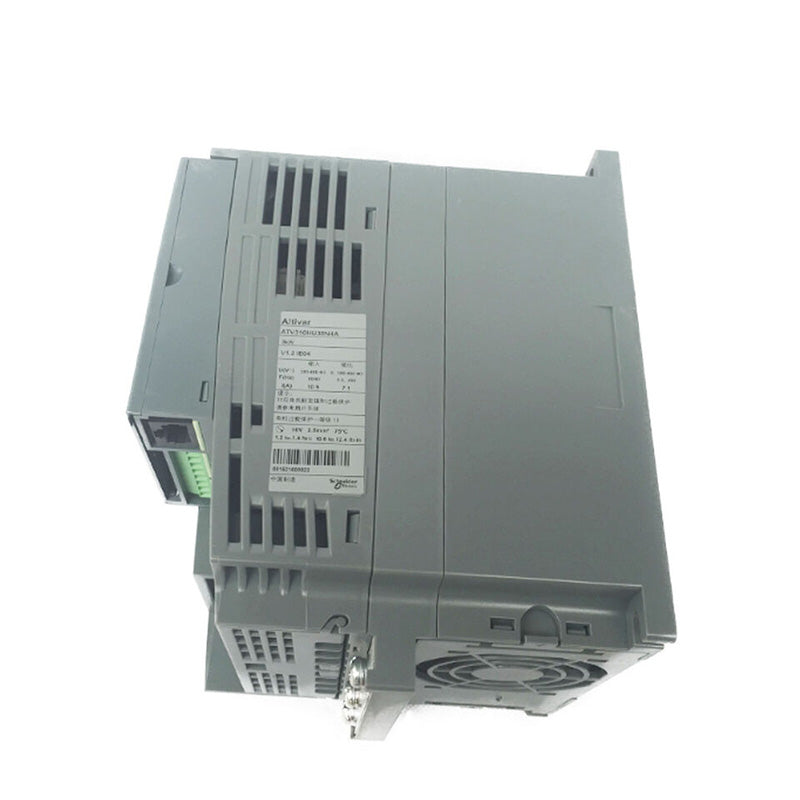

| Connector type |
RJ45 (on front face) for Modbus |
| Physical interface |
2-wire RS 485 for Modbus |
| Transmission frame |
RTU for Modbus |
| Transmission rate |
4800 bit/s
9600 bit/s
19200 bit/s
38400 bit/s |
| Number of addresses |
1…247 for Modbus |
| Communication service |
Read holding registers (03) 29 words
Write single register (06) 29 words
Write multiple registers (16) 27 words
Read/write multiple registers (23) 4/4 words
Read device identification (43) |
| Line current |
2.1 A at 380 V (heavy duty)
1.8 A at 460 V (heavy duty) |
| Apparent power |
1.4 kVA at 460 V (heavy duty) |
| Prospective line Isc |
5 kA |
| Continuous output current |
1.5 A heavy duty |
| Maximum transient current |
2.3 A during 60 s (heavy duty) |
| Power dissipation in W |
19.6 W, at In (heavy duty) |
| Speed drive output frequency |
0.5…400 Hz |
| Nominal switching frequency |
4 kHz |
| Switching frequency |
2...12 kHz adjustable |
| Speed range |
1…20 |
| Transient overtorque |
170…200 % of nominal motor torque depending on drive rating and type of motor |
| Braking torque |
Up to 150 % of nominal motor torque with braking resistor at high inertia
Up to 70 % of nominal motor torque without braking resistor |
| Asynchronous motor control profile |
Quadratic voltage/frequency ratio
Sensorless flux vector control
Energy saving ratio |
| Motor slip compensation |
Preset in factory
Adjustable |
| Output voltage |
380...460 V three phase |

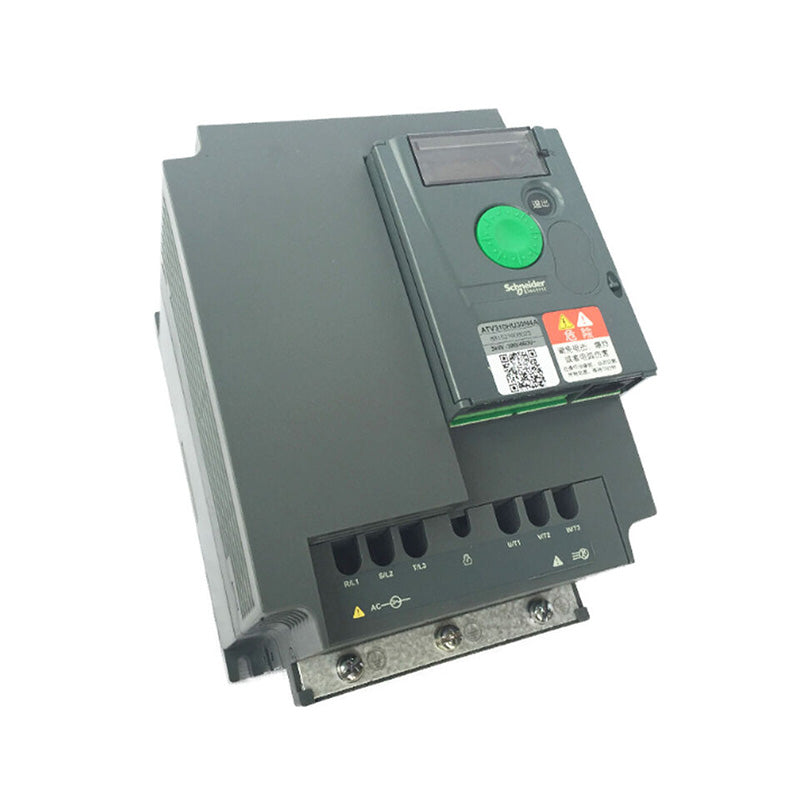

| Electrical connection |
Terminal, clamping capacity: 1.5...2.5 mm² (L1, L2, L3, PA/+, PB, U, V, W) |
| Tightening torque |
0.8…1 N.m |
| insulation |
Electrical between power and control |
| Supply |
Internal supply for reference potentiometer: 5 V (4.75…5.25 V)DC, <10 mA with overload and short-circuit protection
Internal supply for logic inputs: 24 V (20.4…28.8 V)DC, <100 mA with overload and short-circuit protection |
| analogue input number |
1 |
| Analogue input type |
Configurable current AI1 0...20 mA 250 Ohm
Configurable voltage AI1 0...10 V 30 kOhm
Configurable voltage AI1 0...5 V 30 kOhm |
| Discrete input number |
4 |
| Discrete input type |
Programmable LI1...LI4 24 V 18...30 V |
| Discrete input logic |
Negative logic (sink), > 16 V (state 0), < 10 V (state 1), input impedance 3.5 kOhm
Positive logic (source), 0...< 5 V (state 0), > 11 V (state 1) |
| Sampling duration |
10 ms for analogue input
20 ms, tolerance +/- 1 ms for logic input |
| Linearity error |
+/- 0.3 % of maximum value for analogue input |
| analogue output number |
1 |
| Analogue output type |
AO1 software-configurable voltage: 0...10 V, impedance: 470 Ohm, resolution 8 bits
AO1 software-configurable current: 0...20 mA, impedance: 800 Ohm, resolution 8 bits |
| Discrete output number |
2 |
| Discrete output type |
Logic output LO+, LO-
Protected relay output R1A, R1B, R1C 1 C/O |
| Minimum switching current |
5 mA at 24 V DC for logic relay |
| Maximum switching current |
2 A at 250 V AC on inductive load cos phi = 0.4 L/R = 7 ms for logic relay
2 A at 30 V DC on inductive load cos phi = 0.4 L/R = 7 ms for logic relay
3 A at 250 V AC on resistive load cos phi = 1 L/R = 0 ms for logic relay
4 A at 30 V DC on resistive load cos phi = 1 L/R = 0 ms for logic relay |
| Acceleration and deceleration ramps |
Linear from 0...999.9 s
S
U |
| Braking to standstill |
By DC injection, <30 s |
| Protection type |
Line supply overvoltage
Line supply undervoltage
Overcurrent between output phases and earth
Overheating protection
Short-circuit between motor phases
Against input phase loss in three-phase
Thermal motor protection via the drive by continuous calculation of I²t |
| Frequency resolution |
Analog input: converter A/D, 10 bits
Display unit: 0.1 Hz |
| Time constant |
20 ms +/- 1 ms for reference change |
| Operating position |
Vertical +/- 10 degree |
| height |
143 mm |
| Width |
72 mm |
| Depth |
130 mm |
| Net weight |
0.8 kg |
