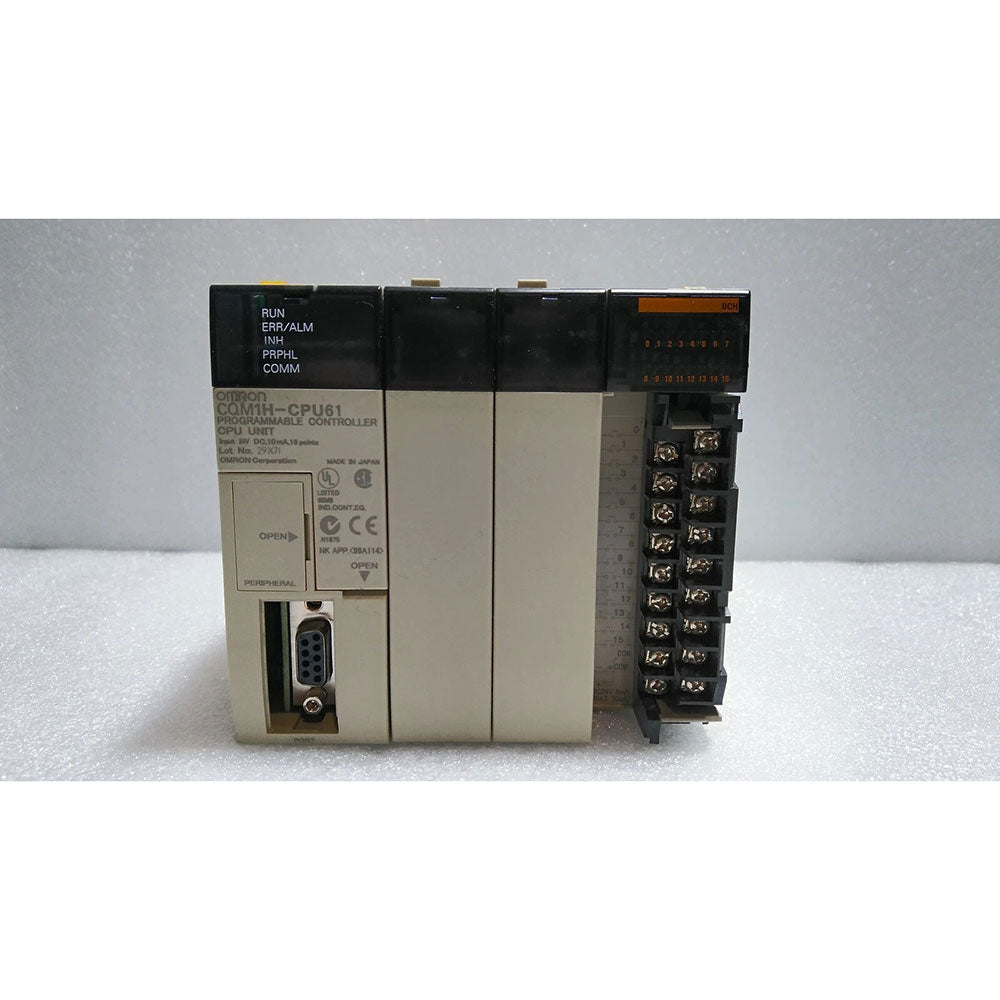

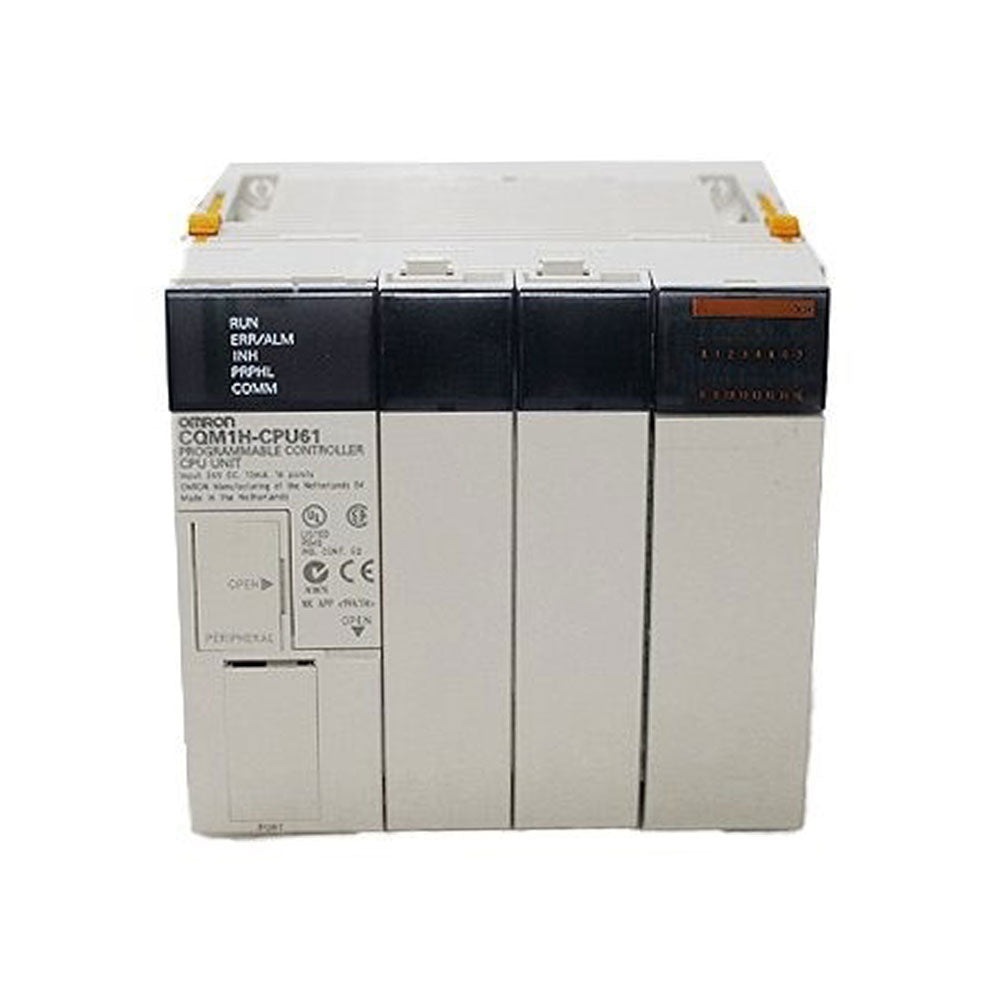

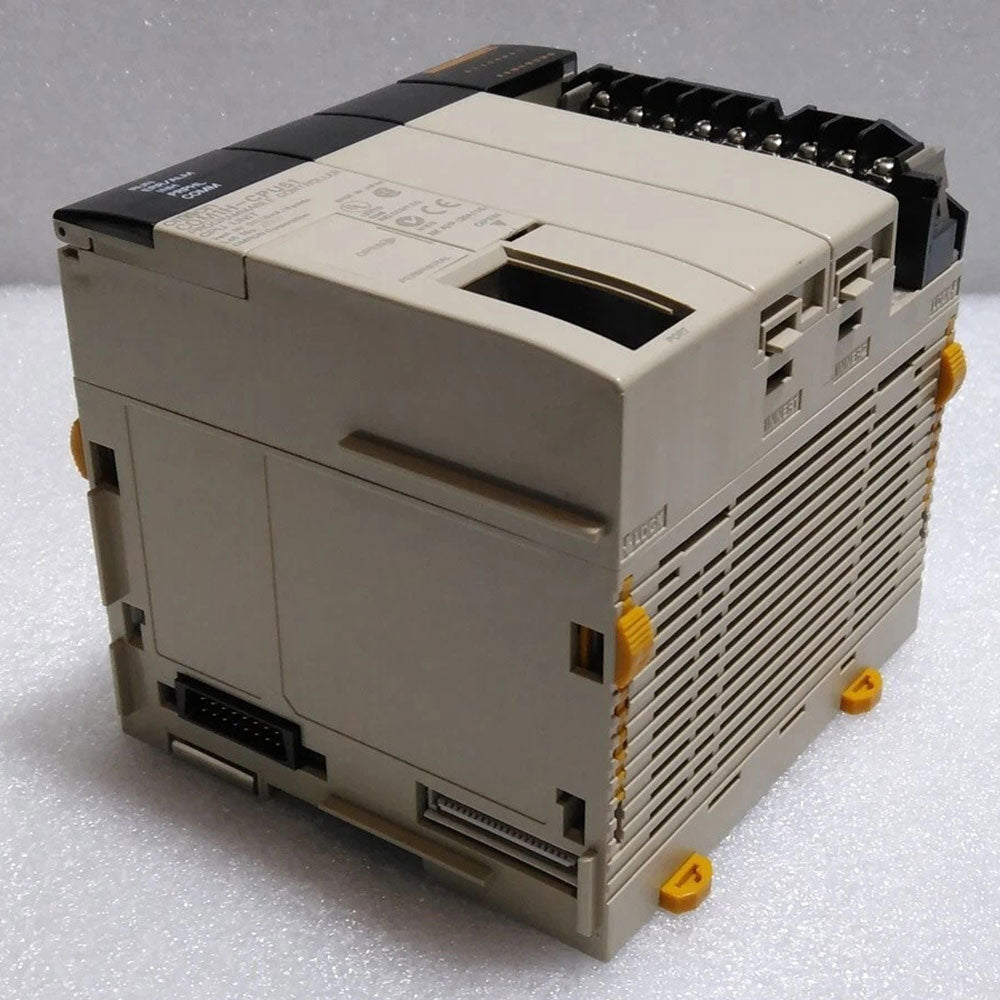

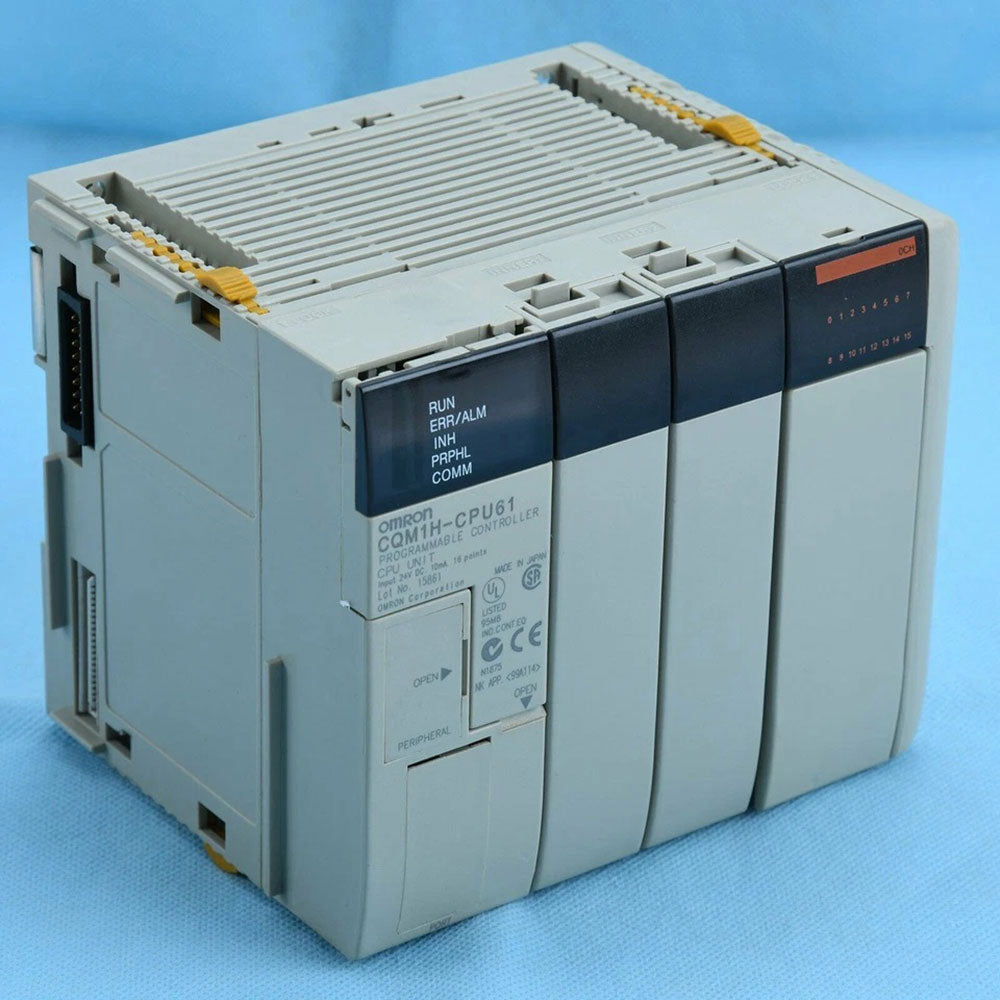

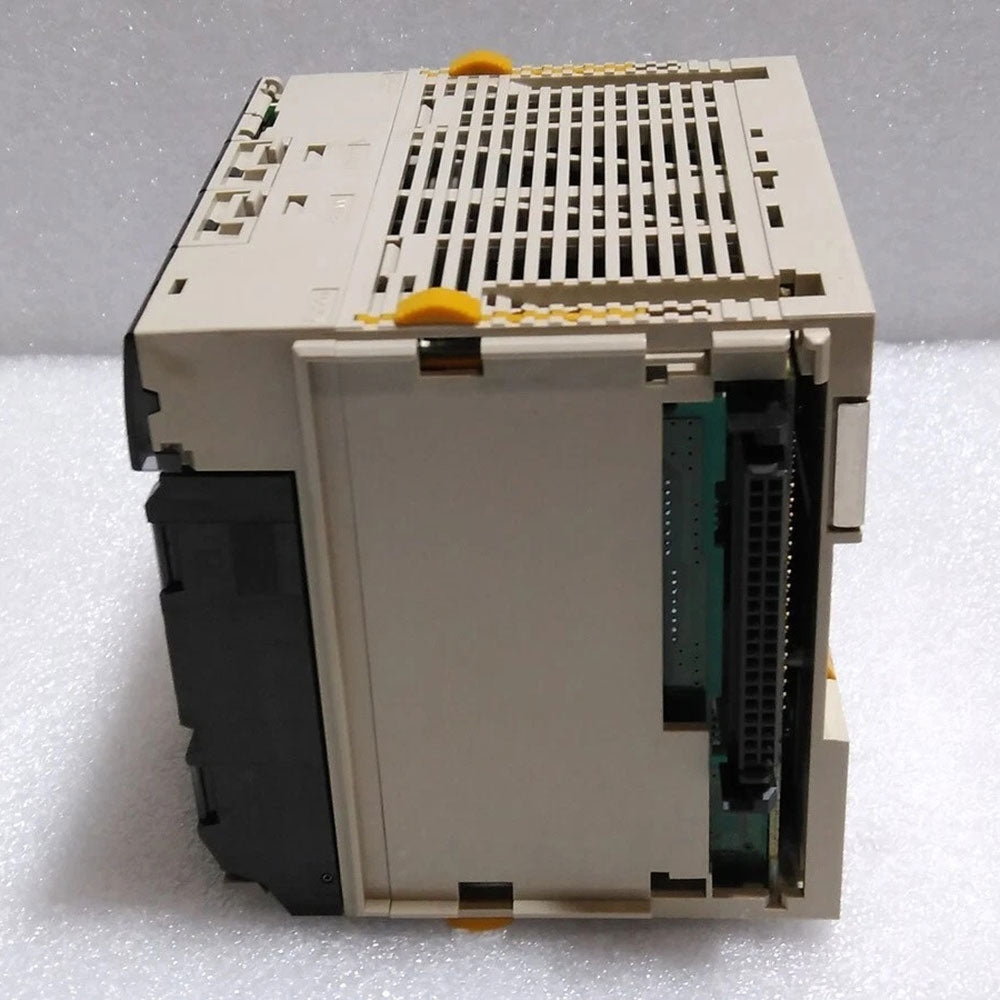

The Omron CQM1H-CPU61 is the highest specification CPU unit in the CQM1H series Programmable Logic Controllers (PLCs), designed for industrial automation applications requiring high-speed and large-capacity control. This CPU module delivers reliable, precise control for complex machinery and production lines.
Key Specifications:
· I/O Capacity: 512 points (256 inputs + 256 outputs)
· Program Capacity: 15.2 Kwords
· DM Capacity: 6 Kwords
· EM Capacity: 6 Kwords
· Built-in Inputs: 16 DC inputs
· Supply Voltage: 24 V DC (20.4 to 26.4 V DC)
· Communication Interface: RS-232C (built-in), Peripheral port
· Inner Boards Supported: Up to 2
· Controller Link Module: Up to 1
· Expansion Modules: Up to 16
· Mounting: DIN Rail
· Dimensions (W × H × D): 25 × 110 × 107 mm
· Weight: 90 g
· Certifications: CE, CSA, NK, UL
Key Features:
· High-Speed Processing: 15.2 Kwords program capacity for complex control logic
· Inner Board Expansion: Supports up to 2 inner boards including high-speed counter, pulse I/O, serial communication, and analog setting boards
· Built-in Communication: RS-232C port and peripheral port for connection to host computers, HMIs, programmers, temperature controllers, and barcode readers
· Controller Link Support: Enables high-efficiency data link systems for distributed control networks
· Compact Design: 25 mm wide, DIN rail mountable for easy cabinet installation
Applications:
· Packaging systems
· Conveyor control
· Distributed control systems
· Machine control requiring high-speed counters and pulse outputs
