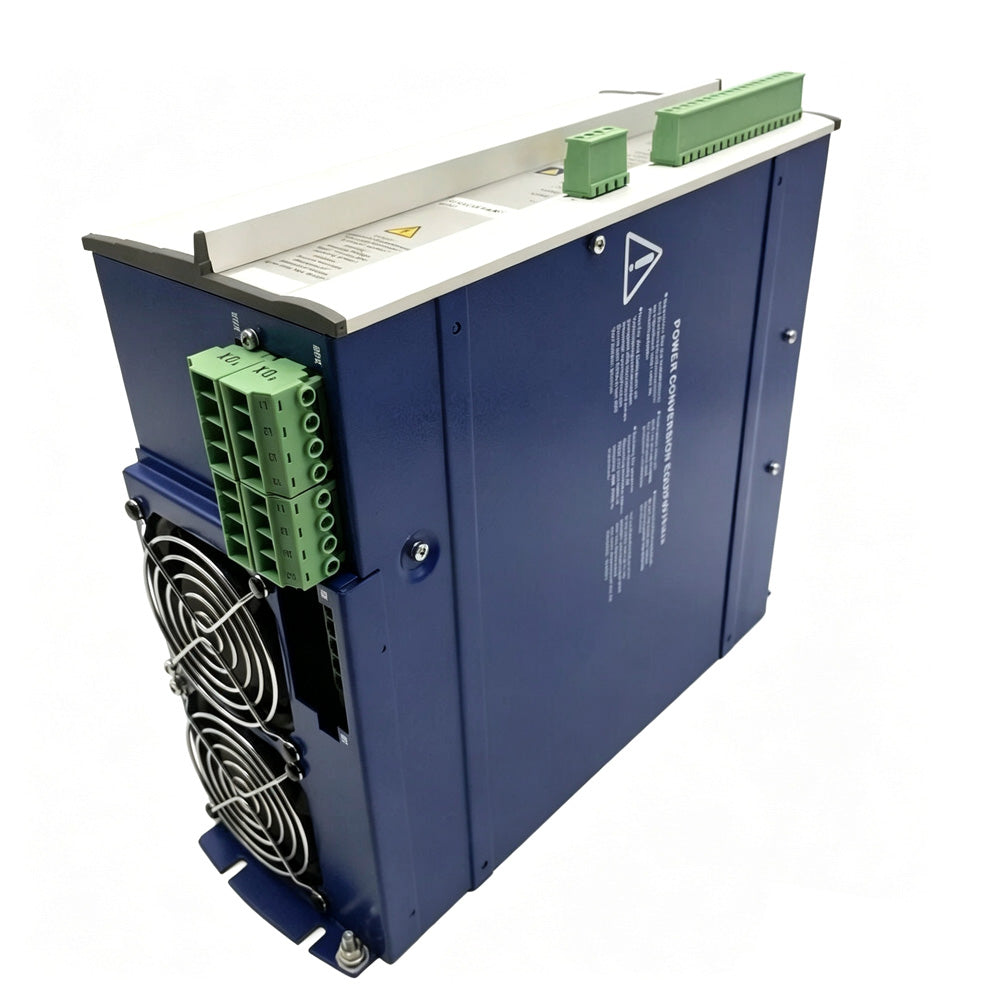

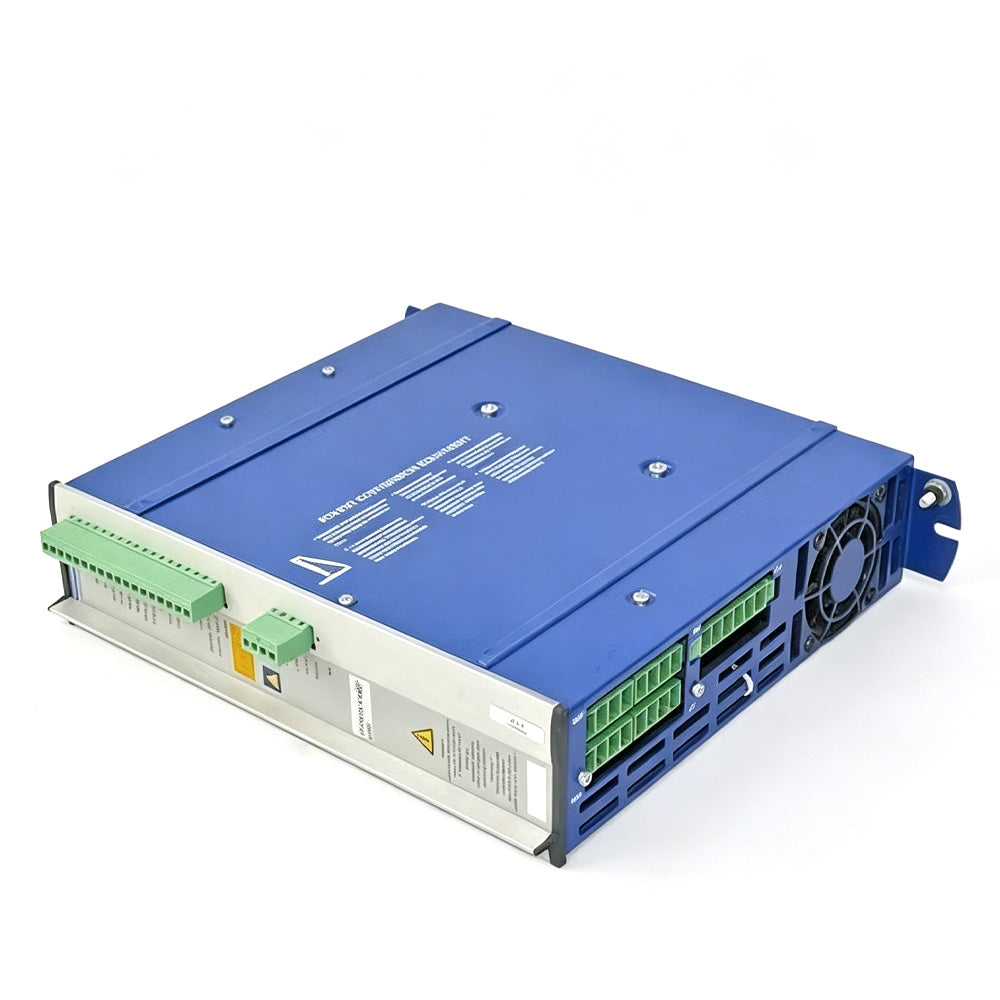

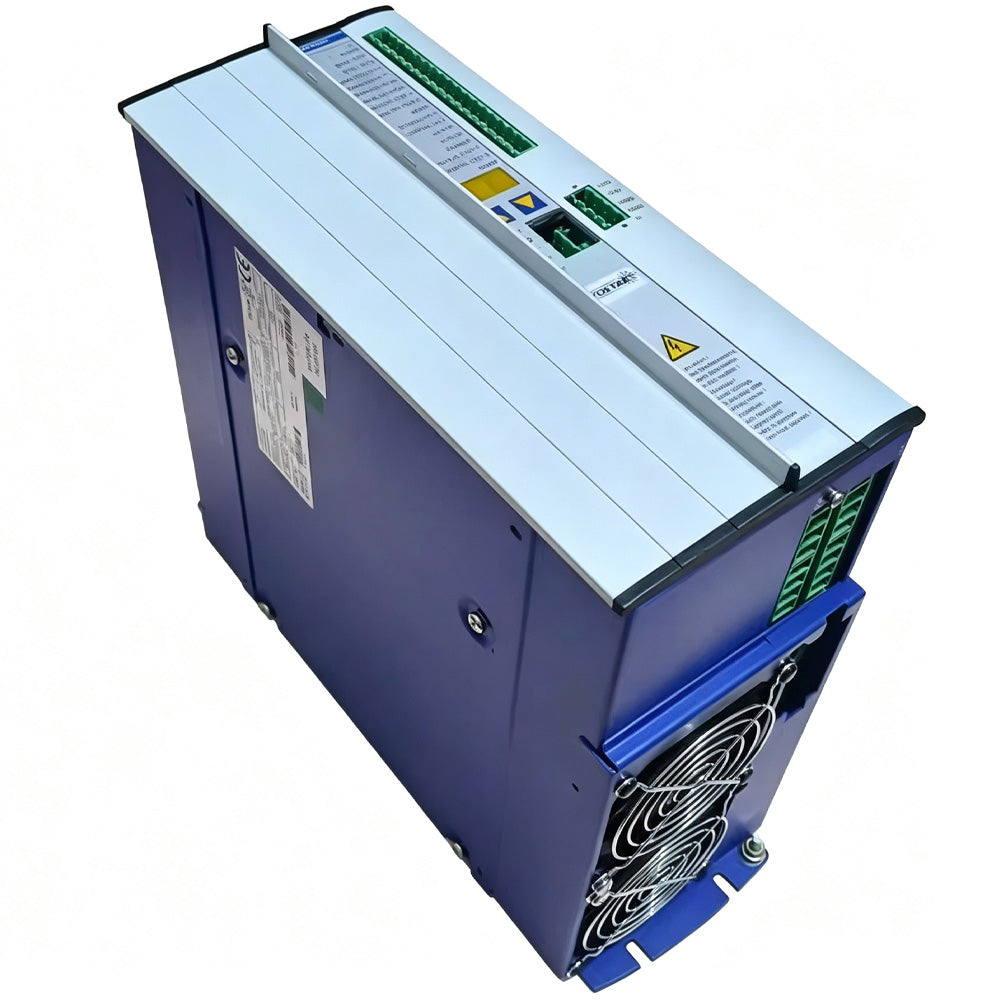

Kollmorgen SERVOSTAR 601 S60100-NA — SERVOSTAR 600 Series Digital Servo Drive
The Kollmorgen SERVOSTAR 601 (S60100-NA) is a compact, mains-fed digital servo amplifier from the proven SERVOSTAR 600 family, rated 1.5 A RMS (approx. 3 A peak) at 230–480 VAC, 3-phase, 50/60 Hz (1 kVA). It provides precise, low-latency motion control for brushless servo motors with resolver or high-resolution sin/cos encoder feedback — an ideal solution for low-power, high-dynamics single-axis applications.
The "-NA" suffix denotes the standard version without option cards (no fieldbus expansion, no extra electrical options). Servo loops, RS232 setup and encoder emulation (ROD426-compatible / SSI) are all built in as standard. DC-link circuits can be connected in parallel, enabling compact multi-axis systems.
Your Benefits at a Glance
- 1.5 A rated / approx. 3 A peak — precise control for low-power servo axes
- Direct mains operation — 230–480 VAC, 3-phase, no separate supply needed
- Resolver or high-resolution sin/cos encoder feedback — wide motor compatibility
- Fully programmable via RS232 — quick setup with PC-based software
- Encoder emulation ROD426-compatible or SSI — flexible integration with existing controls
- Parallel DC-link capability — compact multi-axis systems with shared bus
- Proven SERVOSTAR 600 platform — trusted worldwide in machine automation
Key Features
Standard Version Without Options The "-NA" suffix means no option cards are fitted — the well-proven standard SERVOSTAR 601 configuration with all core functions included.
Flexible Feedback Feedback is supported from resolver or high-resolution sin/cos encoder, covering a broad range of Kollmorgen and third-party brushless servo motors.
Easy Integration Encoder emulation outputs (ROD426-compatible, decimal/binary, or SSI Gray/binary) make it simple to interface with existing position displays and controls; RS232 setup software provides fast commissioning.
Multi-Axis Ready The DC-link circuits can be connected in parallel (with patented ballast handling), enabling compact, cost-effective multi-axis systems with a shared supply.
Technical Specifications
表格
| Item | Specification |
|---|---|
| Manufacturer | Kollmorgen (formerly Danaher Motion) |
| Product Family | SERVOSTAR 600 Series Digital Servo Amplifier |
| Device Name | SERVOSTAR 601 |
| Model | S60100-NA (standard version, no option cards) |
| Rated Output Current | 1.5 A RMS (±3 %) |
| Peak Output Current | approx. 3 A (short-time overload) |
| Rated Power | 1 kVA |
| Input Voltage | 230–480 VAC, 3-phase, 50/60 Hz (direct mains operation) |
| Feedback | Resolver or high-resolution sin/cos encoder |
| Encoder Emulation | ROD426-compatible (dec/bin) or SSI (Gray/binary), selectable |
| Setup Interface | RS232 (PC setup software) |
| Expansion | None (standard version) |
| DC-Link | Parallel connection supported (patented ballast handling) |
| Enclosure | IP20 (typical) |
| Status | Discontinued by manufacturer — supplied as spare part / refurbished |
Note: Exact electrical data is per the nameplate / manual of your specific unit; please verify before ordering.
Typical Applications
- Low-power single-axis positioning and feed systems
- Packaging, printing and converting machinery
- Material handling and general machine automation
- Replacement and retrofit of SERVOSTAR 600 series drives
