Product Description

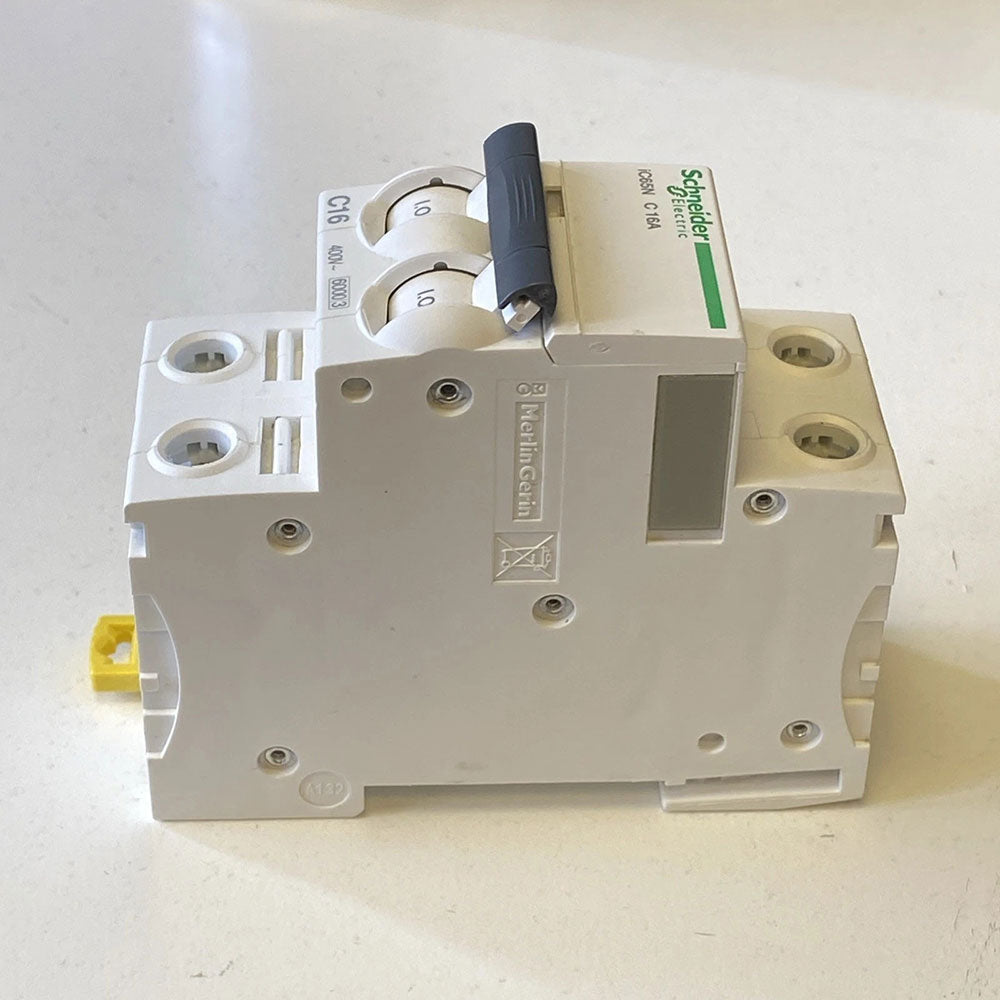

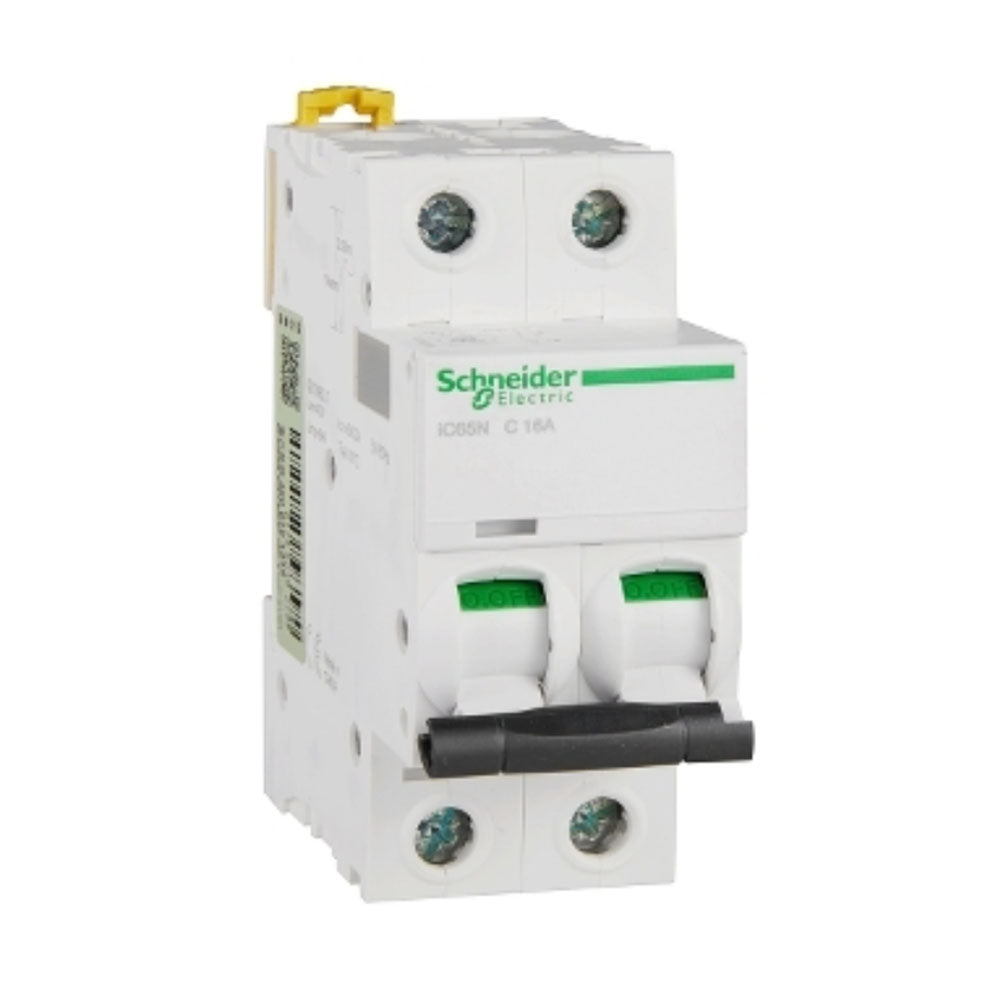

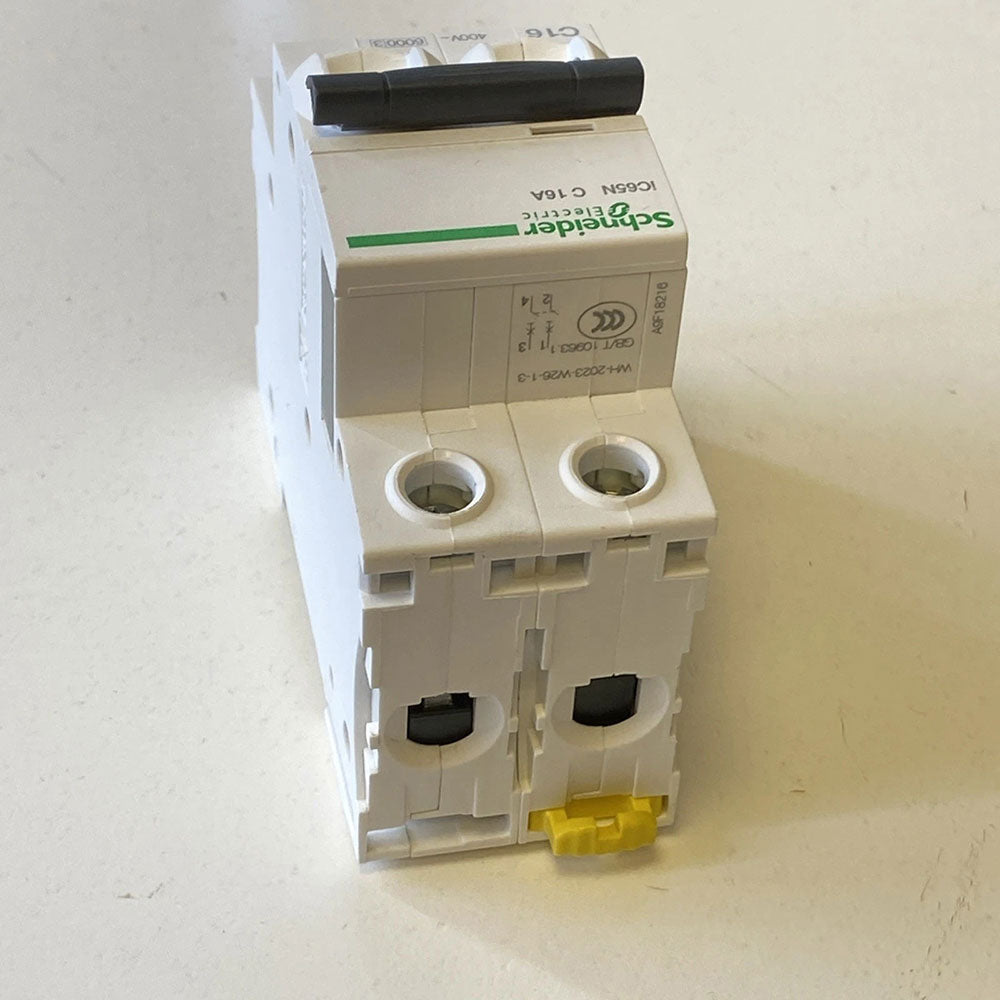

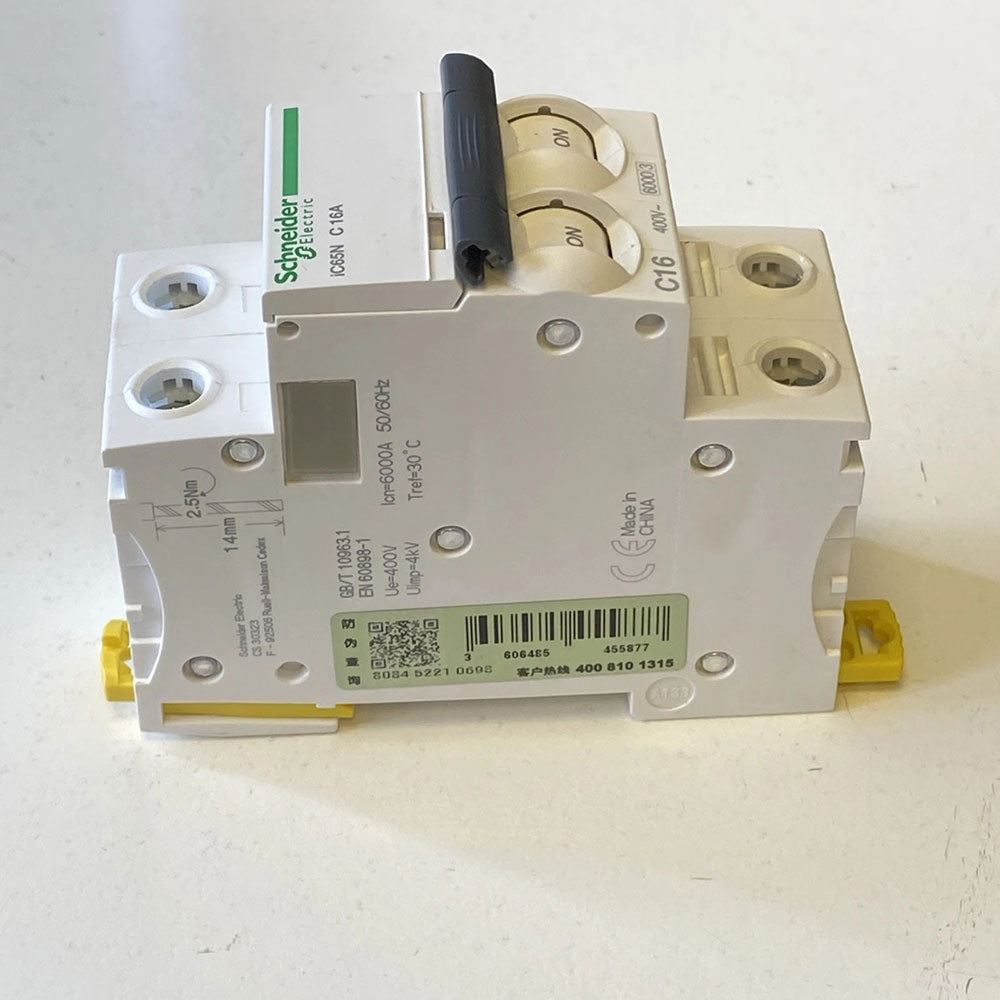

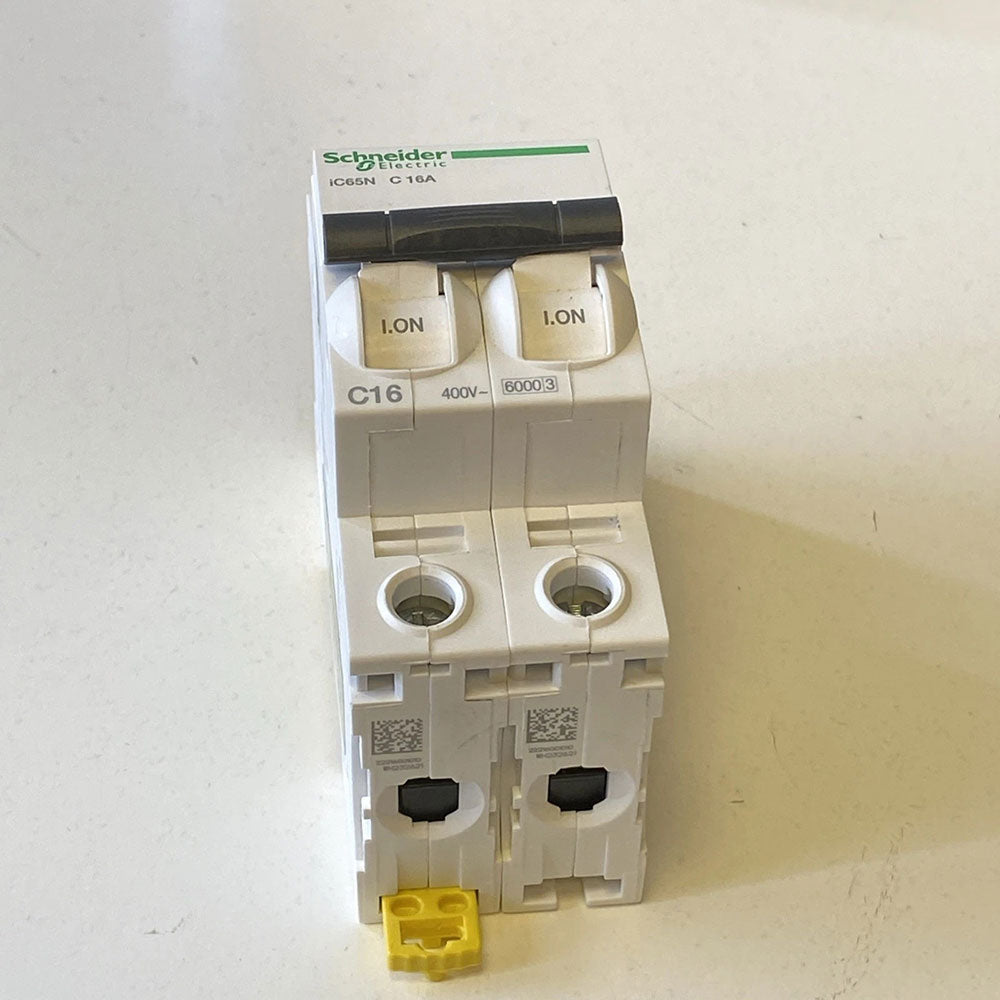

Schneider IC65N 2P C16A 16A 6kA C Curve Miniature Circuit Breaker MCB

Overview:
The Schneider IC65N 2P C16A is a high-performance miniature circuit breaker from the Acti 9 series, designed for reliable protection of electrical circuits against overload and short circuits. Ideal for residential, commercial, and industrial applications.

Key Specifications:

· Model: IC65N 2P C16A
· Catalog No.: A9F18216
· Poles: 2P
· Rated Current (In): 16A
· Tripping Curve: C (5-10 In)
· Rated Voltage: 400V AC
· Breaking Capacity: 6kA (IEC 60898)
· Frequency: 50/60 Hz
· Mounting: DIN rail (35mm)
· Protection Rating: IP20
· Width: 2 modules (36mm)
· Standards: IEC 60898, EN 60898

Features:

· C Curve tripping characteristic for general purpose protection
· 6kA breaking capacity suitable for most residential and commercial applications
· Compact 2-module design saves space in distribution boards
· Clear ON/OFF indication with red/green flags
· Tunnel type terminals for secure wiring
· Compliant with international standards

Applications:

· Lighting circuits
· Socket outlets
· Residential distribution boards
· Commercial buildings
· Light industrial applications

Package Includes:
1 x Schneider IC65N 2P C16A Miniature Circuit Breaker
