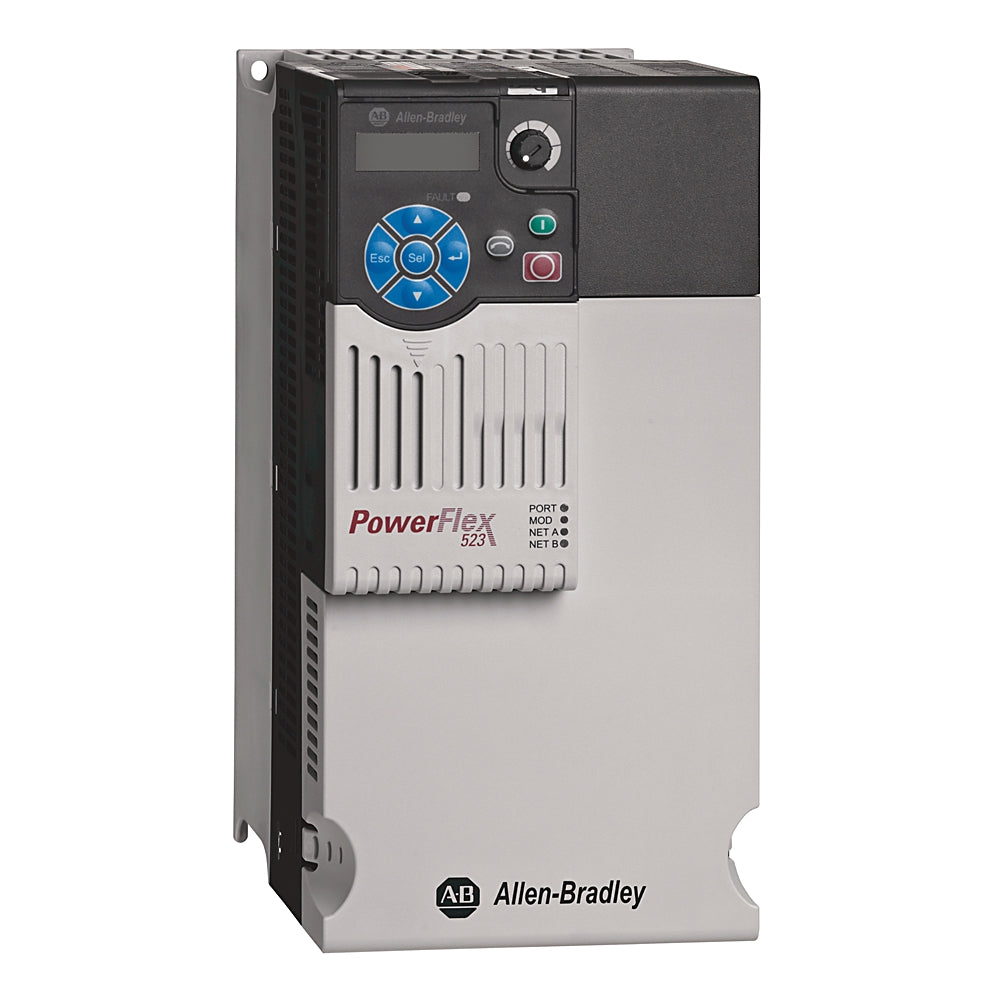

Designed by Allen Bradley, the PowerFlex 523 series drive, part number 25A-D024N114, is an adjustable frequency AC drive that significantly enhances motor control capabilities. It operates with input voltages ranging from 380 to 480 VAC in a three-phase system, facilitating diverse applications across different industries.

The control methods deployed in this unit are versatile, providing options such as V/Hz, SVC, Economizer SVC, and PWM for dynamic performance. Its output frequency can be adjusted between 0 to 500 Hz, paired with the ability to work on a line frequency of either 50 or 60 Hz, allowing for efficient integration within existing systems.

Additionally, the drive enables users to program four unique acceleration and deceleration profiles, allowing for tailored operational performance based on specific application demands. With a rated motor power of 15 horsepower (11 kW) and supporting a maximum output current of 24 amperes, this unit is aptly suited for moderate to heavy-duty motor applications.

For user programming and convenience, this drive is outfitted with a USB interface as well as a keypad HMI. These features streamline setup and adjustments, making it straightforward to optimize drive performance. Furthermore, it includes an integrated EMC filter to minimize electromagnetic interference, contributing to increased reliability in sensitive environments. The open-type IP20 enclosure rating ensures that this drive can function effectively in the specified conditions while maintaining ease of access for maintenance.
