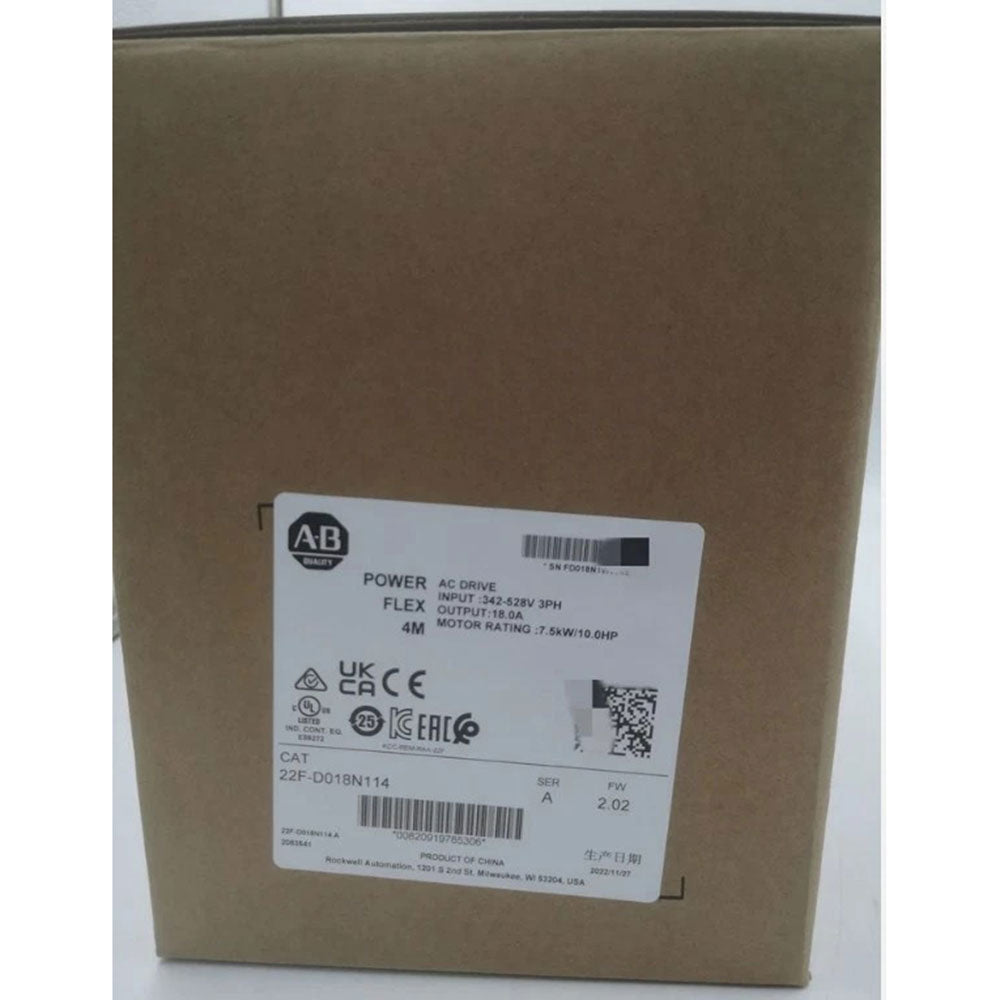

The Allen-Bradley/Rockwell Automation 22F-D018N114 drive is a PowerFlex 4M series AC drive. Its 3-phase input voltage range is from 380 to 480 Volts AC and its 3-phase output voltage range is from 0 to 460 Volts AC. The 22F-D018N114 AC drive supports an EMC filter. This drive has a digital keypad on the front panel for easy drive control. The 22F-D018N114 AC drive has a Size C frame and a rated output current of 24 Amps.
Technical specifications for 22F-D018N114
| Manufacturer | Allen Bradley |
|---|---|
| Category | Drives |
| Product Line | PowerFlex 4M |
| Part Number | 22F-D018N114 |
| Weight | 9.00 lbs (4.08 kg) |
| Amperage | 18 |
| Wattage | 7.5 Kilowatt |
| Enclosure Type | Open- IP20 |
| Input Power | 480 Volts- Alternating Current |
| Phase | Three-Phase |
| Filter | With Internal CE Compliant Filter |
| Horsepower | 10 Horsepower |
| Communication | RS-485 Port |
Description
The Allen-Bradley 22F-D018N114 is a PowerFlex 4M AC drive suitable for applications that require open-loop speed regulations. This 3-phase drive has a liquid crystal display (LCD) that can display 5 digits in 16 segments and which is a HIM Human Interface Module with support for multiple languages. Input on the 22F-D018N114 drive is done through the drive’s integral keypad and its speed can be controlled using the drive’s speed potentiometer. It is also equipped with 10 LED status indicators. It has an enclosure rating of IP20 NEMA/open and it can be mounted using a panel mount. This drive also has an EMC filter and a standard brake. It uses a “volts per Hertz” motor control and it is suitable for applications which require open-loop speed regulation.
The voltage rating of the 22F-D018N114 drive is 480V AC and its output frequency range is from 0-400 Hz. This drive’s input ratings are made up of a voltage range of 340-528V AC, at a kW range of 16.3kW, and an amperage range of 19.5A, while its output ratings consist of 7.5 kW, 10 HP, and 18A. It has an operating temperature of -10-40 oC and a storage temperature of -40-85 oC. The maximum operating altitude of this drive is 1000 m or 3300 ft. and its non-condensing relative humidity is 0-95%. This drive also has an operating shock of 15 g for 11 ms, +/- 1 ms, as well as an operating vibration of 1 g peak at 5-2000 Hz.
