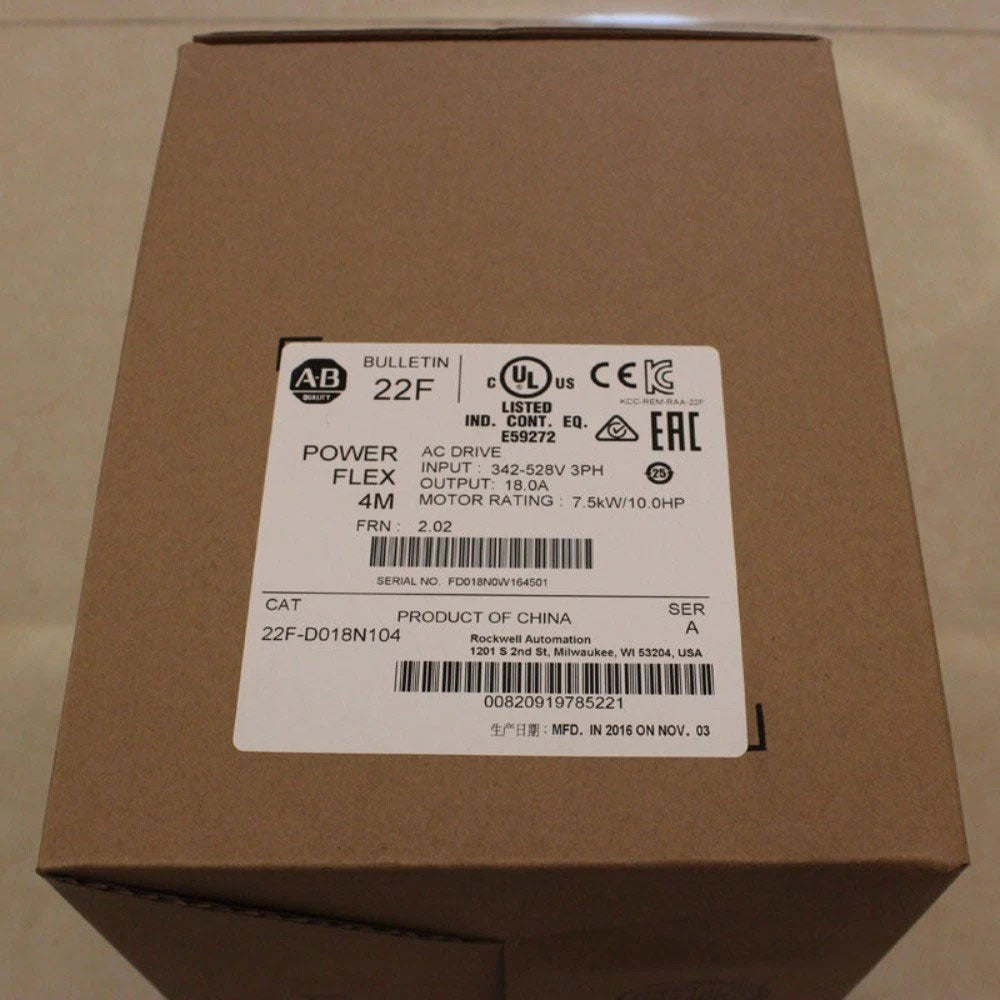

The 22F-D018N104 is an adjustable frequency AC drive that is part of the PowerFlex 4M product category. This drive features Volts / Hertz (V/Hz) control method, slip compensation, feed-through wiring, and support for DIN rail mounting.

The 22F-D018N104 is powered by an input voltage supply of 340-528 VAC, 3-Phase, 3.0 kVA, and 3.5 Ampere input current. It is capable of providing an output voltage range of 0-460VAC, 3-Phase, output current of 2.5 Amperes and power output applicable for AC motors rated 7.5kW (10.0 HP). Being an A Frame drive, the 22F-D018N104 may be installed using a DIN rail. Still, Panel Mounting is applicable. For installation anticipated to experience an increased level of shock or vibration but not exceeding the recommended vibration and shock ratings, it is recommended to install the drive using the panel mount method as panel mounting exhibits an increased susceptibility to shock and vibration. For branch circuit protection, the Allen-Bradley recommended protection is 140M-C2E-B40 while recommended contactor is 100-C09.

The 22F-D018N104 supports configuration using the embedded keypad and LCD.

The 22F-D018N104 comes with a embedded input and output channels such as Five (5) Sink / Source binary inputs; One (1) Form C contact for binary output; and One (1) 0-10VDC; 0-20mA analog input channels. These embedded I/O channels is used to operate the drive remotely, in manual or automatic mode.

This unit is an adjustable frequency AC Drive, which is an air-cooled drive and provides users with effective motor speed control in a space-saving design. An integral CE compliant filtering option is not available on this 480 Volt AC three-phase drive with a 7.5 kW power rating and an 18 A output current. The 22F-D018N104 is designed with an IP20 rated enclosure and a fixed terminal connector for fast installation. This unit’s primary installation option is panel mounting. The inrush current of this unit is limited over relay pre-charge. The drive has an available IR and slip compensation. The integral brake transistor delivers a dynamic braking option with low-cost brake resistors. This AC drive has a robust overload protection and can withstand a 150% current overload for 60 seconds or a 200% current overload for 3 seconds. The RS485/DSI communication port enables this inverter to be used in a multi-drop network configuration. The 22F-D018N104 can be controlled over an integrally fixed keypad, over the RS485 network protocol, or over the terminal inputs (24 Volt DC logic can be set as either sink or source control via a DIP switch). Fast backup and restoration are available through this option. For simple applications, the 22F-D018N104 AC drive can be quickly programmed over the 12 most common application parameters by using integral keypad with 4-digit display. If there is any need to save valuable panel, space zero stacking is can be applied in a working temperature of up to 40 degrees Celsius. 50 degrees Celsius working temperatures are tolerable with minimal drives spacing. Its dimensions are 10.24 x 5.12 x 7.09 inches (130 x 260 x 180 millimeters) and in total, it weighs about 4.8 kilograms (10.6 pounds).
