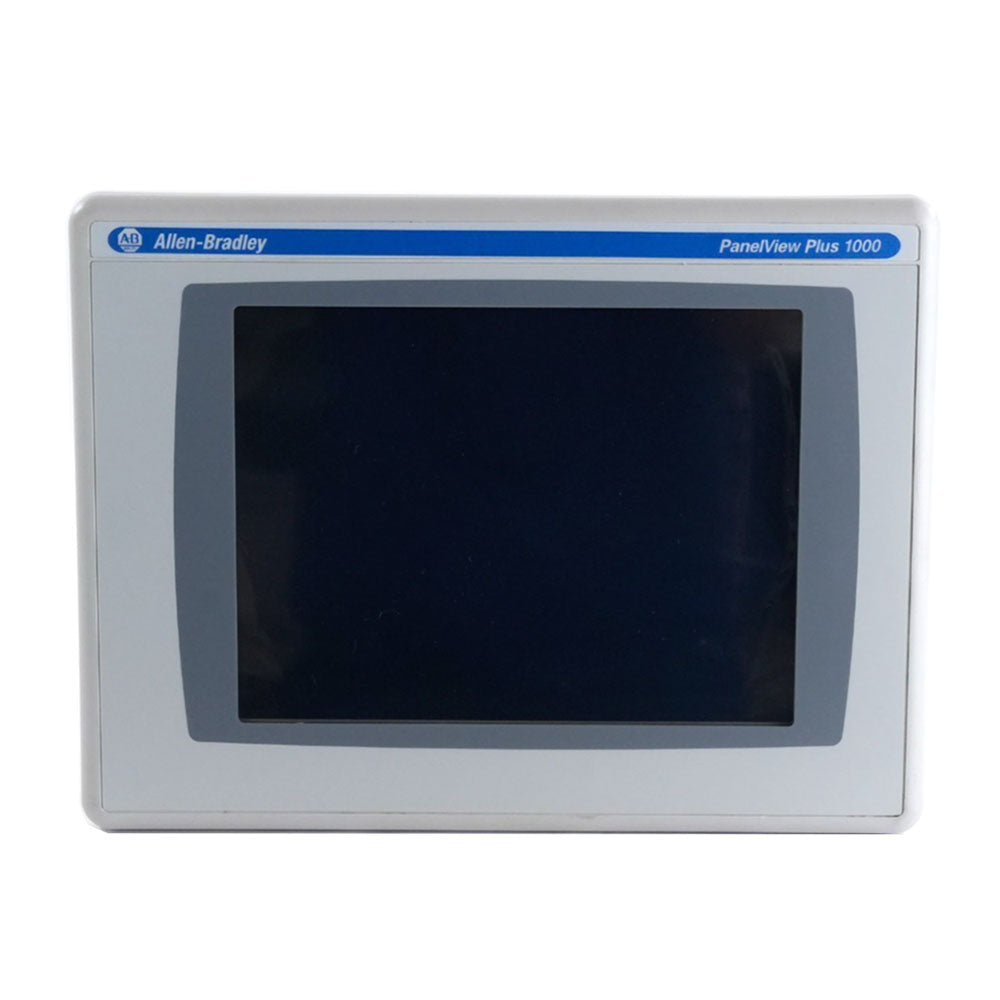

The 2711P-RDT10C Allen-Bradley Display Module is part of the Panelview Plus 1000 series with a 10.4-inch Color Display and Touchscreen. The 2711P-RDT10C is compatible with several Panelview Plus Logic Modules and communication modules that can be installed on the rear of this unit.
Technical specifications for 2711P-RDT10C
| Manufacturer | Allen Bradley |
|---|---|
| Product Type | Display Module |
| Product Line | Panelview Plus 1000 |
| Part Number | 2711P-RDT10C |
| GTIN | 10611320817109 |
| Weight | 4.00 lbs (1.81 kg) |
| Display Size | 10.4 inches |
| Display Type | Color active matrix, thin-film transistor (TFT) with liquid crystal display (LCD) |
| Product Family | PanelView Plus Graphic Terminals |
| Compatibility | PanelView Plus 1000 / PanelView Plus 6 Touch terminals |
| Display Area | 211 x 158 mm (8.31 x 6.22) |
| Resolution | 211 x 158 mm (8.31 x 6.22) Resolution: 640 x 480 |
| Display colors | 18-bit color graphics |
| Luminance | 300 cd/m2 (Nits)(3) |
| Input interface | Touch |
| Anti-Glare overlay | not included |
| Touch Input | 8-wire analog resistive |
| Touch interface lifespan | 1 Million actuations |
| Actuation force | 10-110 g |
| Series | Panelview Plus 1000 series |
| Input Type | Touchscreen |
| Power Consumption | 160 VA max |
| Graphics | 18-Bit |
| Enclosure | NEMA, UL or IP-rated |
| Input Voltage | 100 to 240 Volts AC |
| Communication Ports | RS-232 and Ethernet |
| UNSPSC | 43211902 |
Description
The 2711P-RDT10C is an PanelView Plus / PanelView Plus 6 accessory. This accessory is a replacement part of the pre-installed display module, compatible with 10.4 inch, colored screen and touch operated operator terminal.
This display component features a 10.4-inch colored screen with resolution of 640 x 480 pixels and display area of 211 x 158 mm (8.31 x 6.22). It also has an analog resistive touchscreen that designed to operate up to 1 million actuations at an actuating force of 10-110 g.
The 2711P-RDT10C display module requires only simple setup. As this is a display module with touchscreen membrane, the touch component must be calibrated. Initiate calibration by accessing the operator terminals touch settings and start calibration. Calibration is done with the terminal executing a series of simple steps. It requires operator interaction as the method will ask the user to touch on specified and selected areas of the screen, typically, the corners of the display. Additionally, the display settings also come with an adjustable brightness and contrast. Adjust these settings accordingly.
Common problems encountered with a display module is the low or zero display at all. Typically, when the brightness is already set at maximum and the display is still not visible, the display module must be replaced. It is also ideal to monitor the operation hours of the device.
This display module has an operational lifespan of 50,000 hrs. screen savers may be set to automatically display during idle time. Setting the screen saver properly greatly contributes to a long lasting operation of the device.
