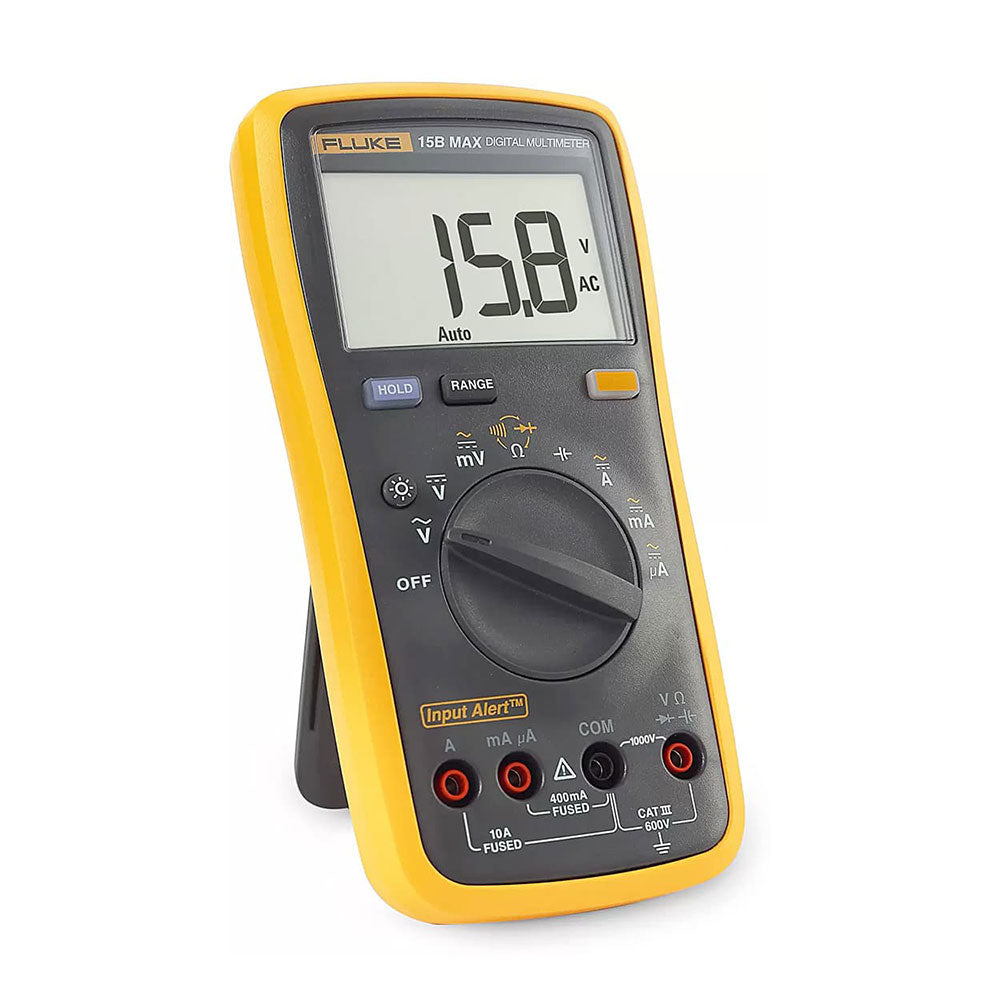

The Fluke 15B MAX-02 is a cost-effective, portable digital multimeter from the renowned measurement instrument brand Fluke. As an upgraded version of the classic 15B+ model, it is designed primarily for electronics R&D, factory maintenance, and electrical technicians. A key feature of the "-02" variant is the inclusion of 1mm extra-fine probe test leads as standard, making it ideal for precision testing on compact printed circuit boards (PCBs).
Core Upgrades & Product Highlights
• Ultra-fine test probes (Exclusive for version -02)

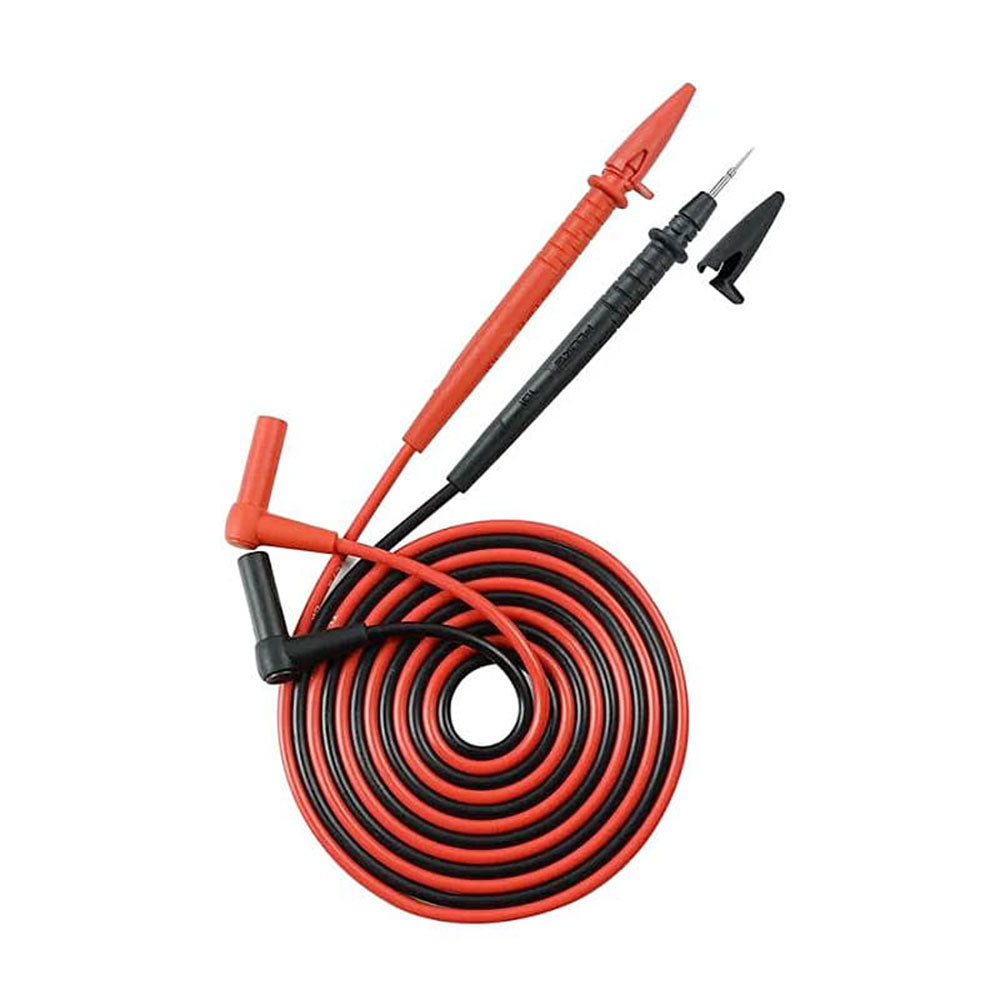

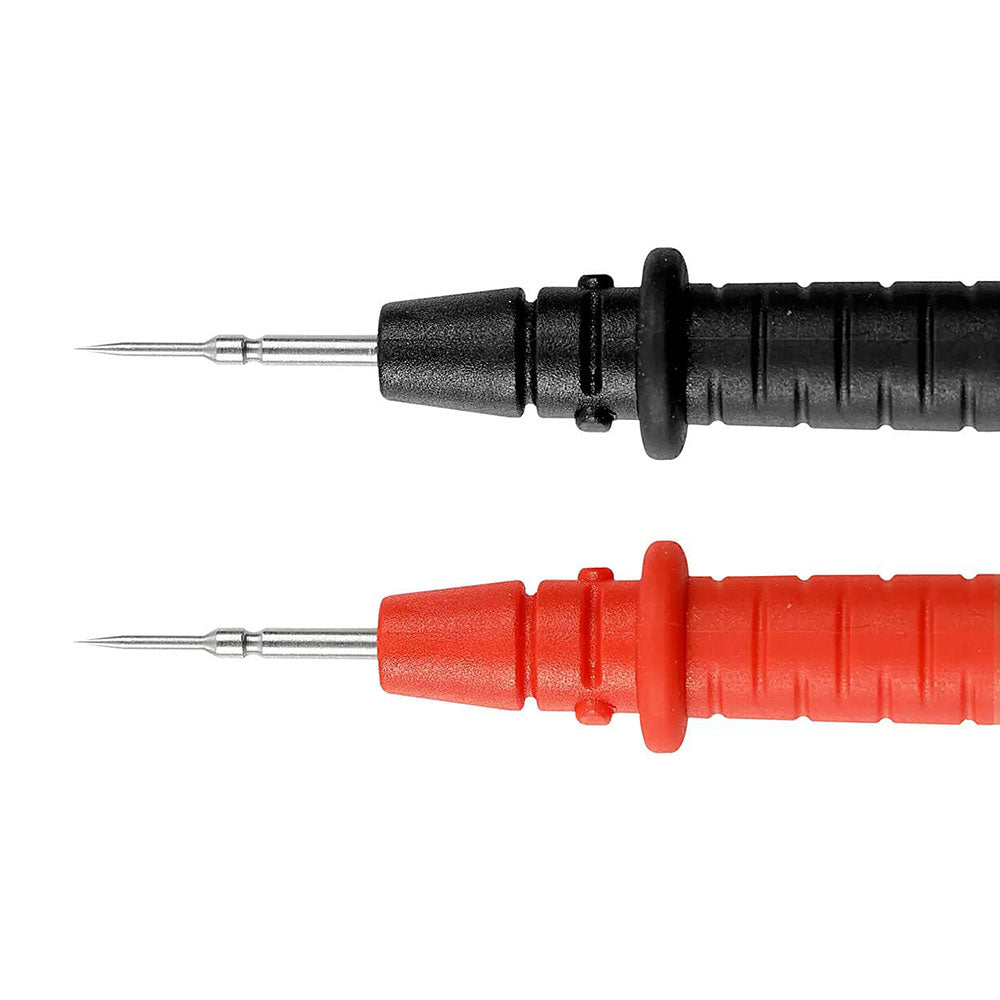

1. Equipped with FLUKE TL31 ultra-fine test leads featuring 1mm sharp probe tips as standard accessories.
2. Perfect for compact pins and narrow PCB gaps to avoid accidental short circuits.
• Input Alert™ Audible and Visual Warning System
1. The meter triggers beeping alarms and screen flashes if test leads are inserted into incorrect jacks, such as plugging leads into current terminals while measuring voltage.
2. Greatly reduce risks of burnt devices and safety hazards.
• One‑Key Wake‑Up Function
Wake up the dormant multimeter directly via any button press without rotating the selector dial.
• Optimized Overall Measuring Performance
1. Upgraded to a 6000‑count display from the former 4000‑count version for superior reading resolution.
2. Maximum capacitance measurement extends to 2000 μF with faster sampling speed.
Core Technical Specifications
Display Count: 6000-count large LCD screen
Voltage Range: Maximum 1000 V AC/DC
Current Range: Maximum 10 A AC/DC
Resistance Range: Up to 40 MΩ
Capacitance Range: Up to 2000 μF
Safety Rating: CAT III 600 V
Power Supply: Powered by 2 AA batteries with continuous runtime exceeding 500 hours
Basic Functions: Auto ranging, audible continuity test, diode test, data hold and backlight display
