Overview

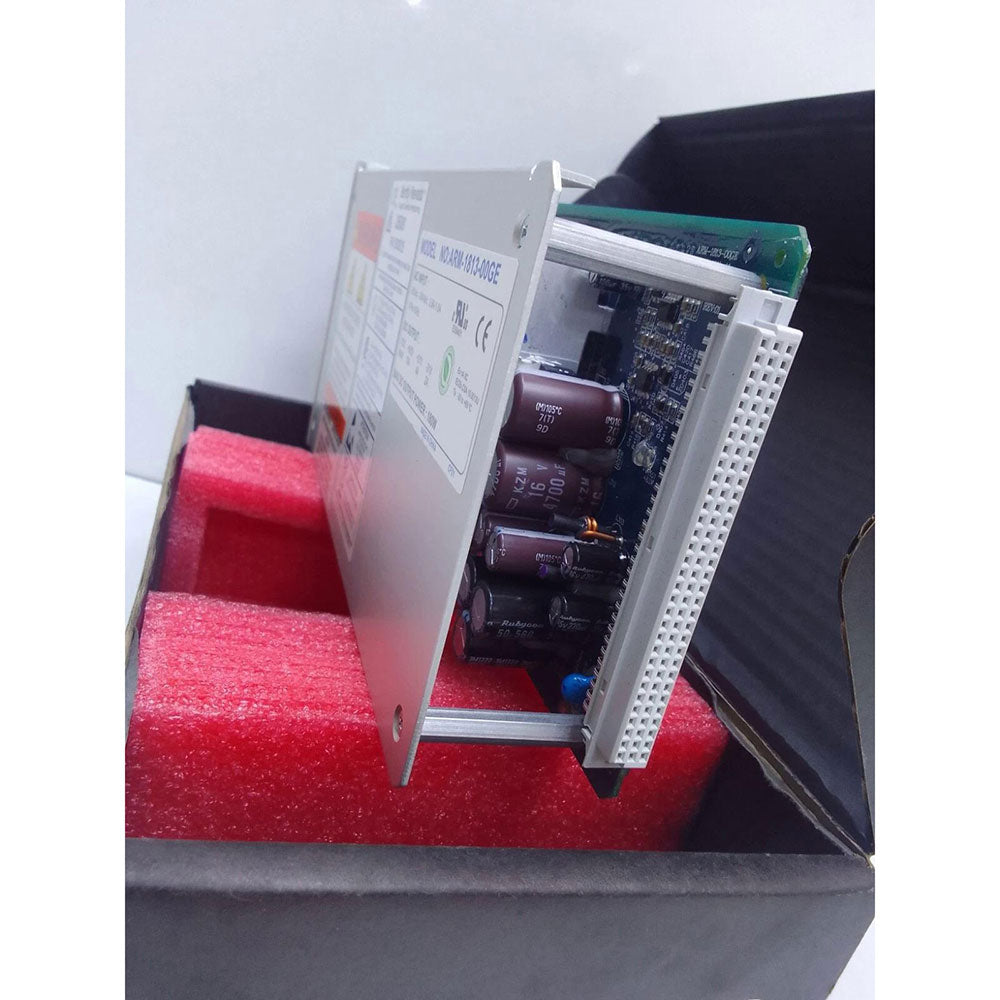

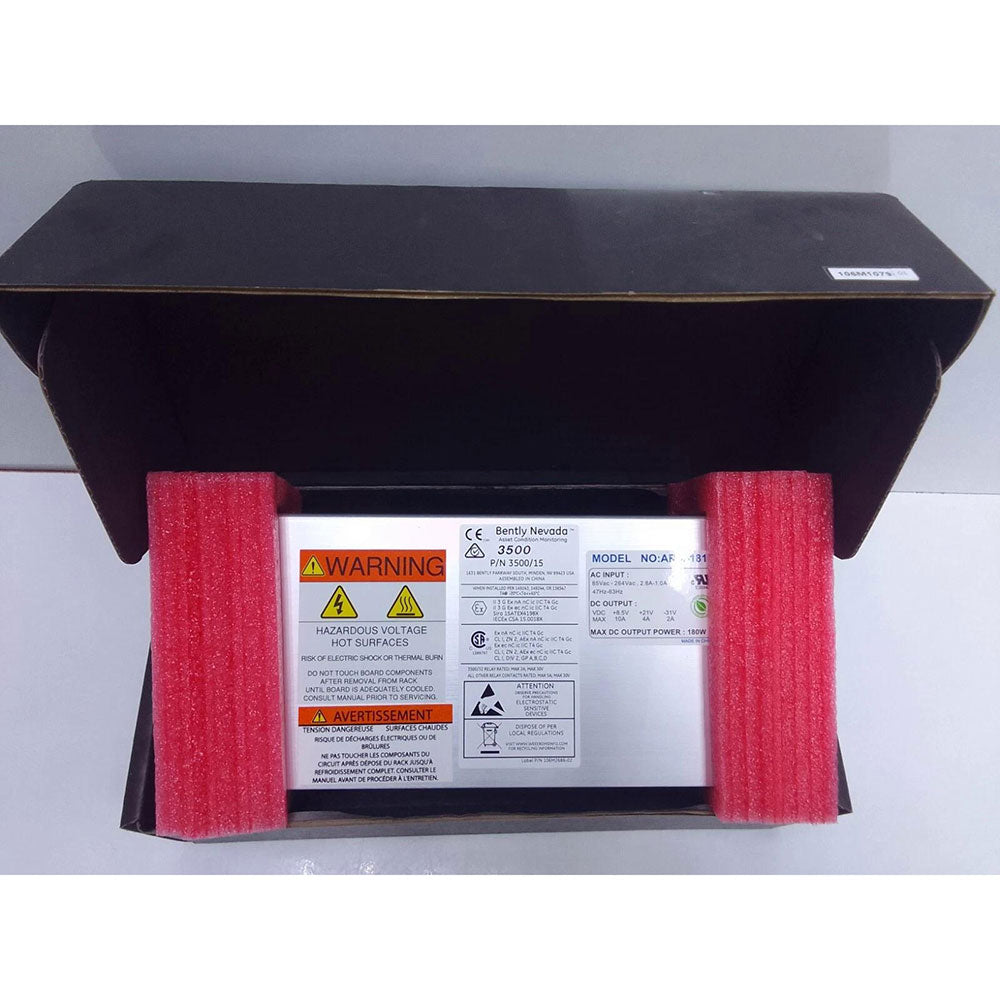

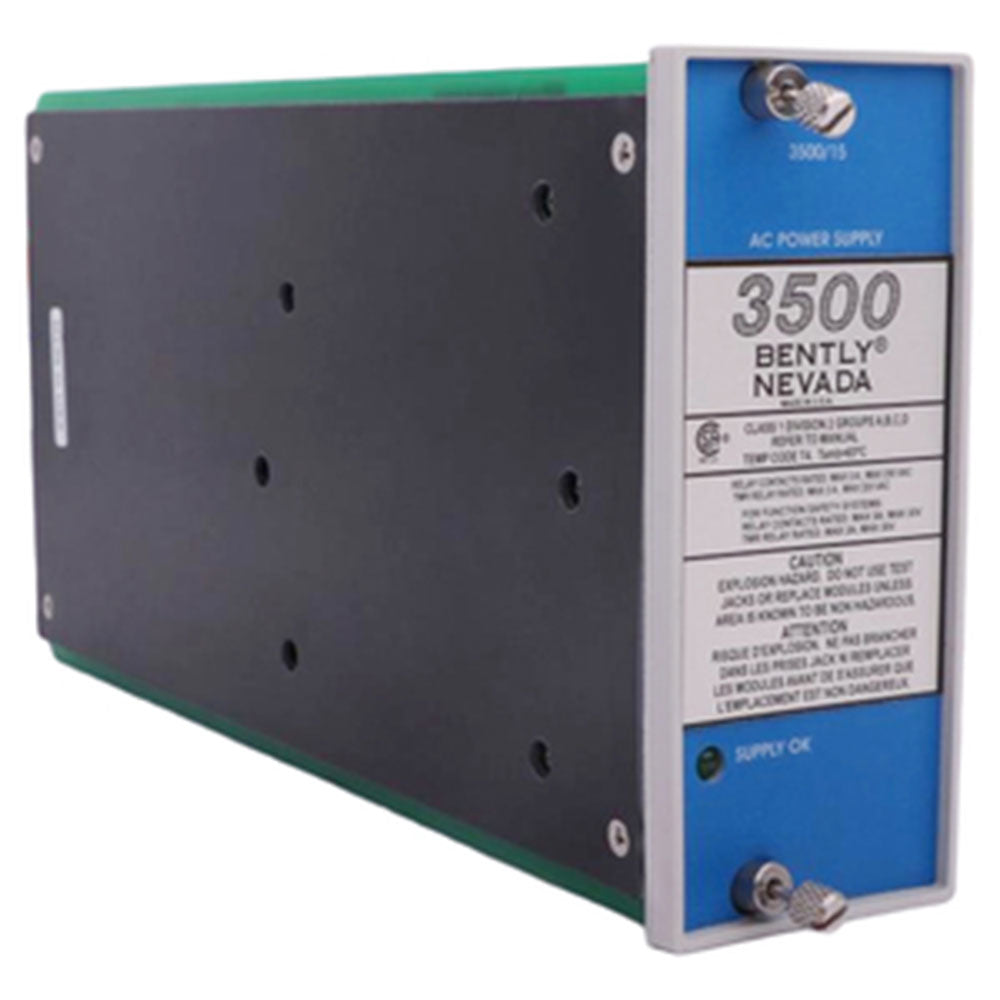

The Bently Nevada 3500/15 106M1079-01 is a universal AC power supply for the 3500/15 vibration monitoring system. It provides a wide range of input voltages (85 to 264 VAC) and output voltages (20 to 30 VDC), making it compatible with a variety of applications. The power supply is also equipped with a number of features to ensure reliable operation, including overvoltage protection, undervoltage protection, and short-circuit protection.

Features

• Universal AC input voltage (85 to 264 VAC)
• Output voltage: 20 to 30 VDC
• Overvoltage protection
• Undervoltage protection
• Short-circuit protection
• ATEX / IECEx / CSA (Class 1, Zone 2) certified

  Technical Specifications

  • Input voltage range: 85 to 264 VAC
  • Output voltage: 20 to 30 VDC
  • Output current: 2.5 A
  • Efficiency: 90%
  • Dimensions: 100 x 100 x 40 mm
  • Weight: 0.5 kg
