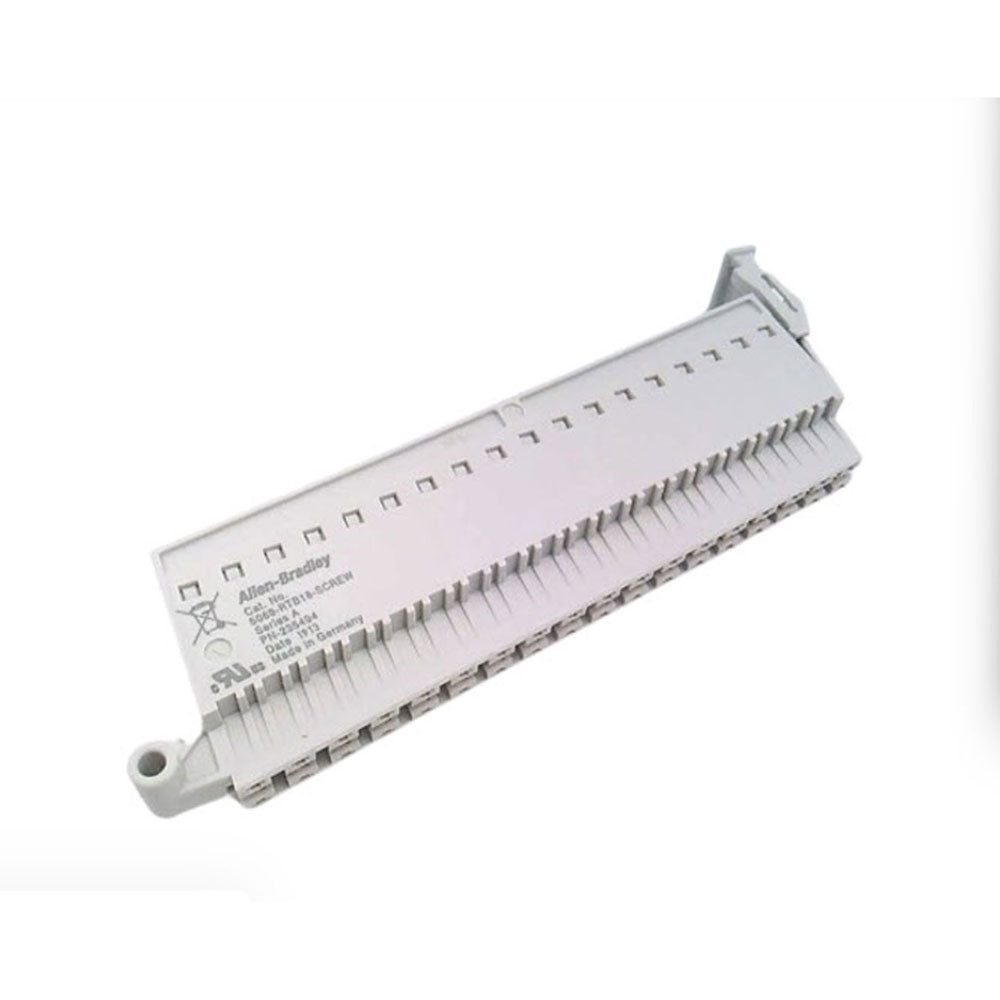

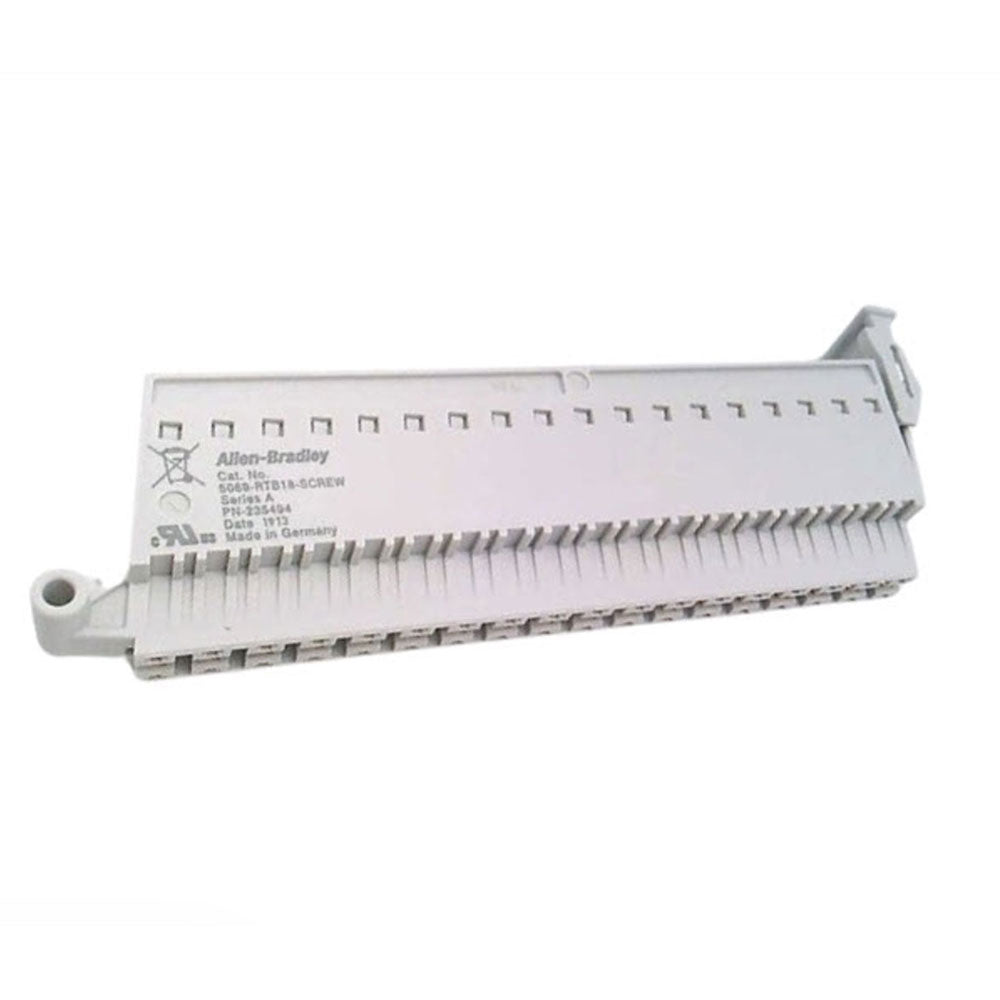

The 5069-RTB18-SCREW is a screw-type terminal block kit by Allen-Bradley. Designed to accommodate 18 pins, it provides four outputs in the form of SPDT (Single Pole Double Throw) connections. This modular component can process output voltages from 5 to 264 Volts AC or 5 to 125 Volts DC.
Technical specifications for 5069-RTB18-SCREW
| Manufacturer | Allen Bradley |
|---|---|
| Category | PLCs |
| Product Line | CompactLogix 5069 |
| Part Number | 5069-RTB18-SCREW |
| UPC | 885630530185 |
| Weight | 0.19 lbs (0.09 kg) |
| Module Type | Screw Type Terminal Block Kit |
| Number of Pins | 18 Pins |
| Number of Outputs | 4 Form C (SPDT) |
| Voltage Category | N/A |
| Input Voltage Range | N/A |
| Output Voltage Range | 5-264 Volts AC or 5-125 Volts DC |
| Power Dissipation | 2.6 Watts |
| Enclosure Type | None (Open Style) |
| CIP Sync Supported | Yes |
| Pattern Matching Supported | Yes |
Description
Part number 5069-RTB18-SCREW from Allen-Bradley is categorized as a screw-type terminal block kit. This component is part of the CompactLogix 5069 series and features a setup that incorporates 18 pins. Specifically, it supplies four outputs configured as Form C (SPDT), facilitating versatile connection options.
The terminal block kit is designed to connect easily without an enclosure, resulting in an open style for straightforward installation. It supports output voltage levels from 5 to 264 Volts AC or 5 to 125 Volts DC, allowing for a wide variety of applications. Power dissipation is rated at 2.6 Watts, making it efficient for process control tasks.
With dimensions of 5.4 inches by 0.87 inches by 4.2 inches (138 mm x 22 mm x 105 mm), it has a compact profile for integration into systems. Weighing 0.39 lbs (175 g), the terminal block kit is lightweight and designed for ease of use. Options for additional features include support for CIP Sync and pattern matching, enhancing the module's capability within a system.
