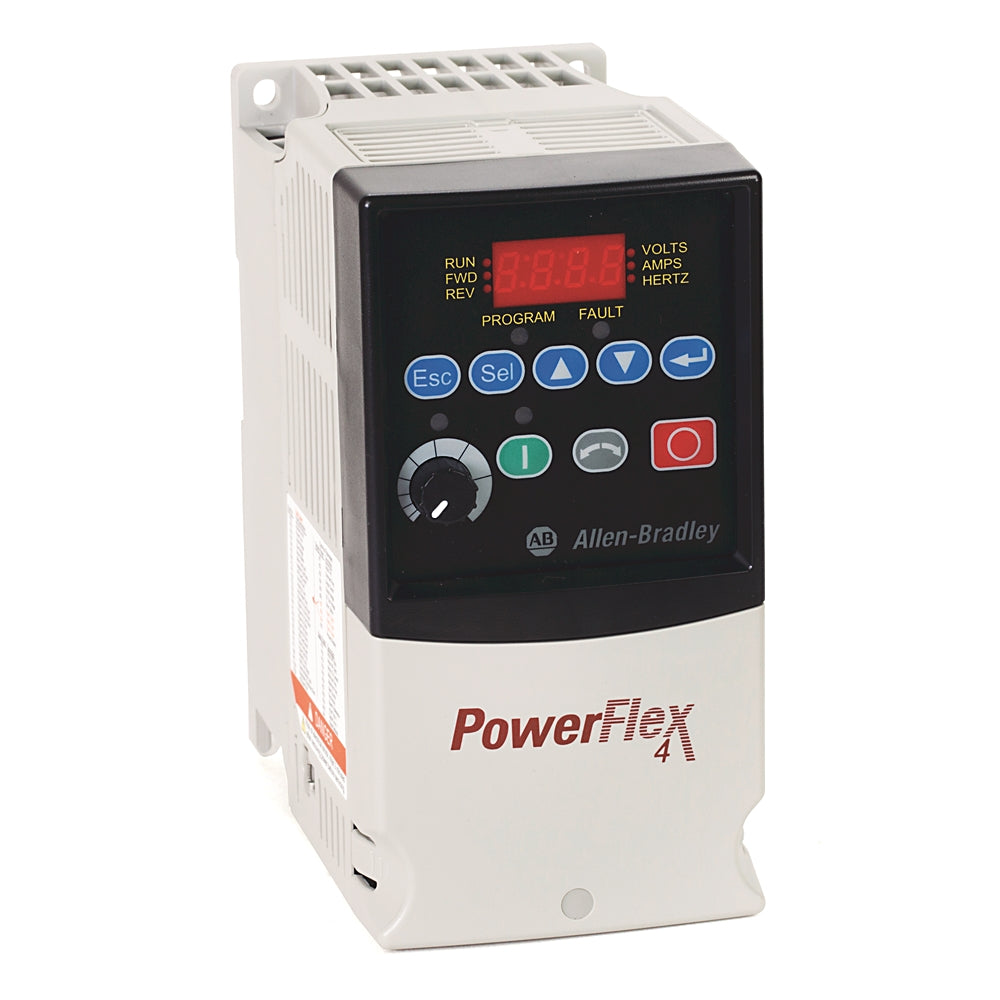

The Allen-Bradley 22A-B017N104 is a 240V AC, 50-60 Hz, 3-phase PowerFlex 4 low voltage AC drive. It comes in an IP20/UL open-type enclosure, but it lacks a CE-compliant filter. The 22A-B017N104 has a B-size frame. This particular drive uses a fixed digital keypad input and also has an LED 4-digit display and LED status indicator lights. The communication port available on this drive is an RS485 port.

The drive’s input power requirement is 200-240V AC, and it also capable of providing 17.5 A output current, 3.7 kW, and 5 HP. The protective features present on the 22A-B017N104 drive are a faultless power ride through feature, a control ride-through feature, under voltage protection, over voltage protection, over current protection, and motor protection. Its operating shock is 15 g peak for 11 ms, while its operating vibration is 1 g peak at 5-2000 Hz. The 22A-B017N104 also has an operating temperature of 14-122 Degree Fahrenheit, a non-operating temperature of -40-185 Degree Fahrenheit. Its ambient non-condensing relative humidity is 0-95%.

The Allen-Bradley 22A-B017N104 is an adjustable Frequency AC drive that belongs to the PowerFlex 4 product category. The 22A-B017N104 is capable of Volts / Hertz or Scalar control and Sensorless Vector Performance and comes with an IP20 / UL Type Open with top cover removed and IP30 / NEMA 1 / UL Type 1 with Top cover and optional conduit box installed.

This 22A-B017N104 is provided with integral protection circuitries including electronic overload protection and ground fault protection as well as Removable MOV, and a 6kV transient protection to ensure the drive’s maximized operation. The 22A-B017N104 is also designed to be installed with external protection devices such as circuit protection devices, input and output power conditioning, Line or EMC filter, DC link chokes, harmonic filters and Reflected wave protection. The 22A-B017N104 is capable of being integrated with control systems such as CompactLogix or ControlLogix controllers via the integrated RS485 communication port. Aside from integration via communication protocol, the 22A-B017N104 also supports traditional integration via hardwiring of external devices to the drive’s built-in Three (3) fixed for START/STOP/REV discrete inputs; Two (2) fully programmable discrete outputs; One (1) analog input that supports 0…10V or 4…20 mA)

The 22A-B012N104 is powered with an input voltage range of 180-264VAC, 3-phase and input current of 21.0 A. The drive is capable of delivering 3-Phase, 0-230VAC and frequency range of 0-400 Hz along an output Current of 12.0 A and Power rating of 2.2 kW (3.0 HP). This drive has an unfiltered emission class and without an insulated-gate bipolar transistor (IGBT) brake installed.
