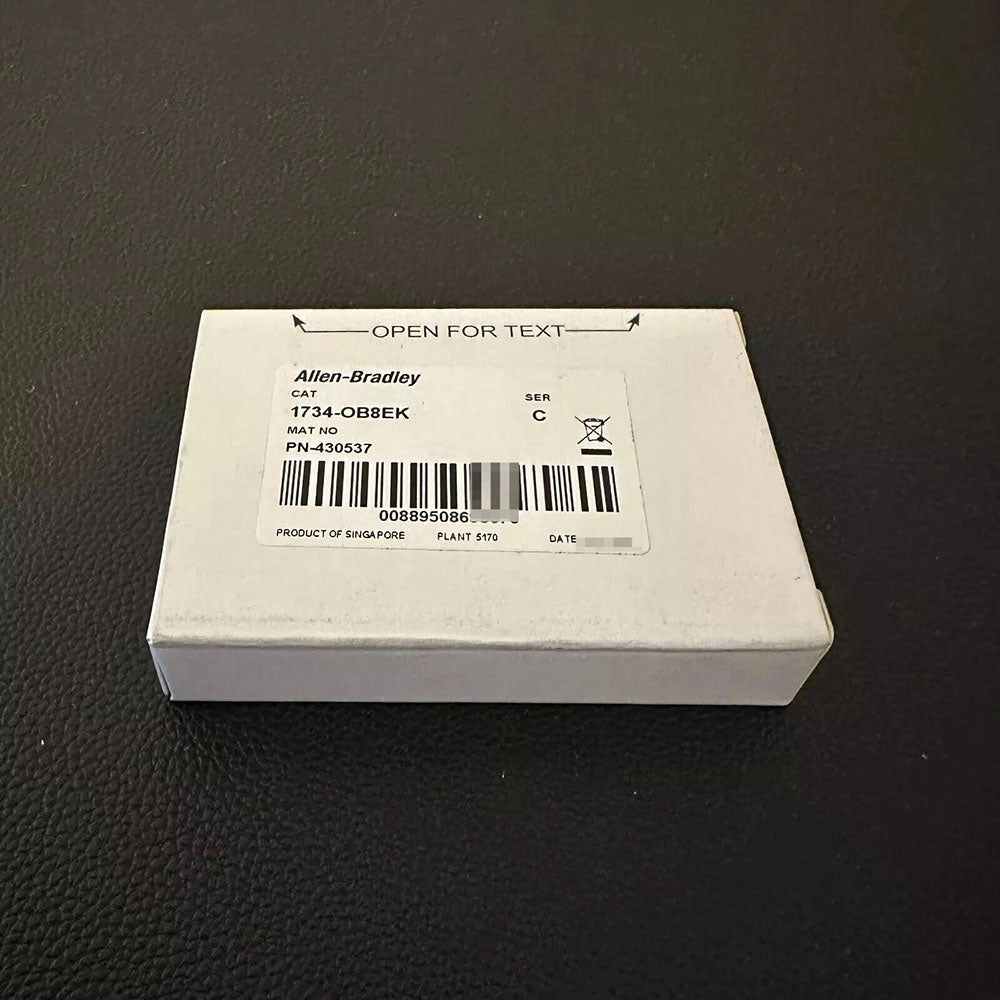

- Description: Output Module
- Product Type: Protected Output Module
- Dimensions, HxWxD: 56.0 x 12.0 x 75.5 mm (2.21 x 0.47 x 2.97 in.)
- External DC power supply current: 32 mA
- External DC power supply voltage, nom: 24V DC
- Indicators (field side indication, logic-driven): 8 yellow – output status | 8 red – output fault | 2 green/red – module/network status
- Isolation voltage: 50V (continuous), reinforced insulation type Tested @ 2500V DC for 60 s, field-side to system
- Keyswitch position: 1
- Number of outputs, non-isolated, sourcing: 8 (1 group of 8)
- Off-state leakage, max: 0.5 mA
- On-state and Off-state voltage, max: 28.8V DC
- On-state current, min, per channel: 1.0 mA
- On-state voltage drop, max: 0.2V DC
- On-state voltage, min: 10V DC
- On-state voltage, nom: 24V DC
- Output current rating, max, per module: 3.0 A
- Output current rating, per output: 1.0 A
- Power dissipation @ 28.8V DC, max: 2.0 W
- POINTBus™ current, max: 75 mA @ 5V DC
- Product Series: POINT I/O Protected
- Surge current: 2 A for 10 ms, repeatable every 3 s
- Terminal base screw torque: 0.8 N•m (7 lb•in)
- Thermal dissipation @ 28.8V DC, max: 6.8 BTU/hr
- Weight, approx.: 35.4 g (1.25 oz)
- K=suffix: Conformal Coating, protects from harsh and/or corrosive environments
