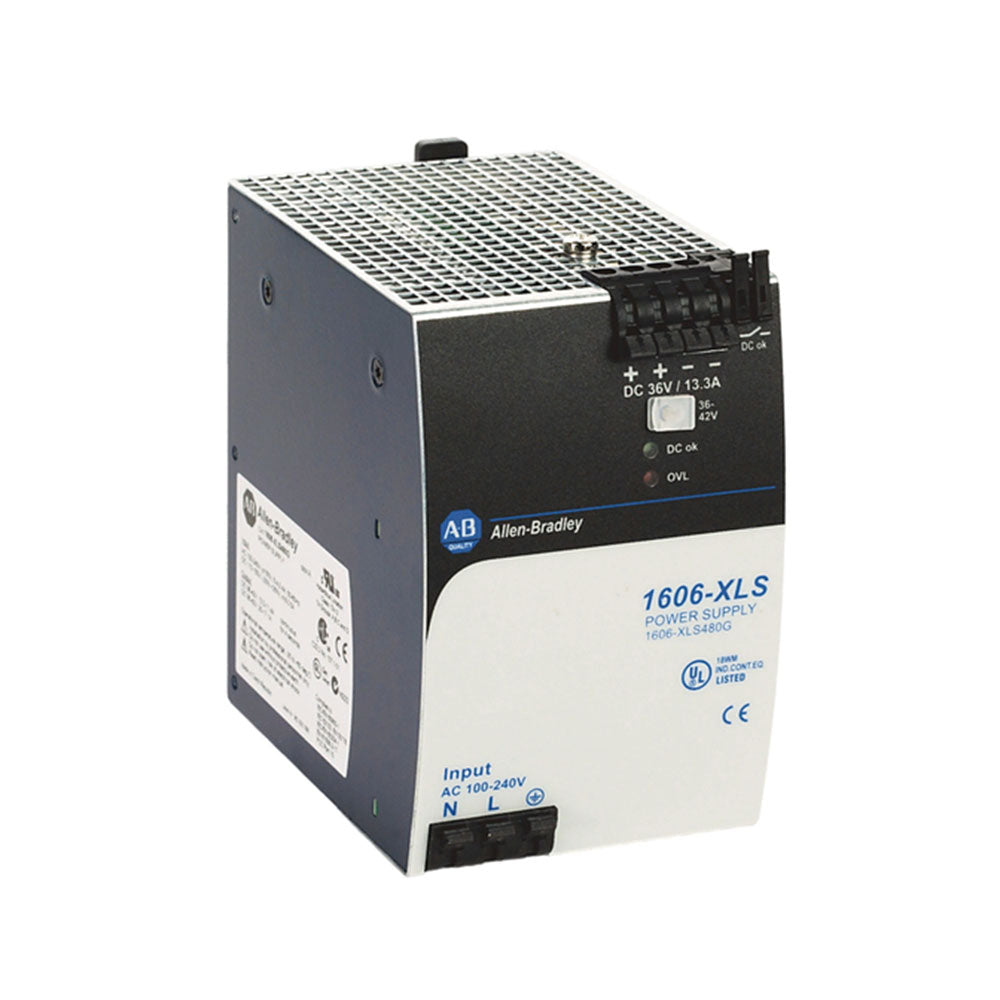

The 1606-XLS480G-3 power supply from Allen-Bradley is a Bulletin 1606-XLS compact power supply. It uses synchronous rectification to be both small and efficient, and it can store up to 150% of its rated power in its reserves and use that power to start heavy industrial loads such as capacity loads or DC motors. The 1606-XLS480G-3 power supply is engineered to be as immune to transients as possible and it has low electromagnetic emissions, which makes it usable in a wide variety of environments. This power supply supports an AC voltage range from 380 to 480 Volts AC with 50/60 Hertz line frequency. The 1606-XLS480G-3 power supply can operate at up to 94.8% efficiency.
Technical specifications for 1606-XLS480G-3
| Manufacturer | Allen Bradley |
|---|---|
| Product Type | Switched Mode Power Supply |
| Product Line | 1606 Switched Mode Power Supplies |
| Part Number | 1606-XLS480G-3 |
| UPC | 662074643950 |
| Weight | 3.00 lbs (1.36 kg) |
| Input Voltage | 380-480V AC |
| Output Power | 480W |
| Output Current | 13.3A |
| Terminals | Spring Clamp |
| Signal | DC-OK |
| Output Voltage | Adjustable |
| Size | Compact |
| Heat Generation | Minimal |
Description
The 1606-XLS480G-3 power supply is an Allen Bradley switched-mode power supply classified as a 1606-XLS series power supply. The unit features an input voltage range of 380 to 480 Volts AC and it has an output current of 13.3 Amps. The 1606-XLS480G-3 power supply features the spring clamp terminal for ensuring an easy mounting process and for making connecting the power supply to the intended application and machine easy. The 1606-XLS480G-3 power supply features the DC-OK signal and it comes with adjustable output voltage and minimal heat generation. The Allen-Bradley 1606-XLS unit features a large power reserve of over 150% for supporting the starting of the heavy loads like DC motors and the other capacitive loads. The 1606-XLS480G-3 power supply also features a high level of immunity to transients and power surges. The 1606-XLS480G-3 power supply can resist the low electromagnetic emissions and this allows the users to easily use the power supply in various environments.
The recommended ambient operating temperature range for the 1606-XLS480G-3 power supply is -25 to 70 degrees Celsius while the recommended ambient storage temperature range is -40 to 85 degrees Celsius. The relative humidity is rated at 5 to 95%, non-condensing, and the unit features a vibration sinusoidal frequency of 2 to 17 Hertz. The shock resistance is 15 G for 6 milliseconds while the operating altitude range is 0 to 2000 meters or 0 to 6560 feet. The 1606-XLS480G-3 power supply comes with various protective features. It has electronic protection against overloading, no-load situations, and short circuits. The unit also features output over-voltage protection. In the case of an internal power supply defect, a redundant circuit is able to limit the maximum output voltage. The 1606-XLS480G-3 power supply also comes with overtemperature protection.
