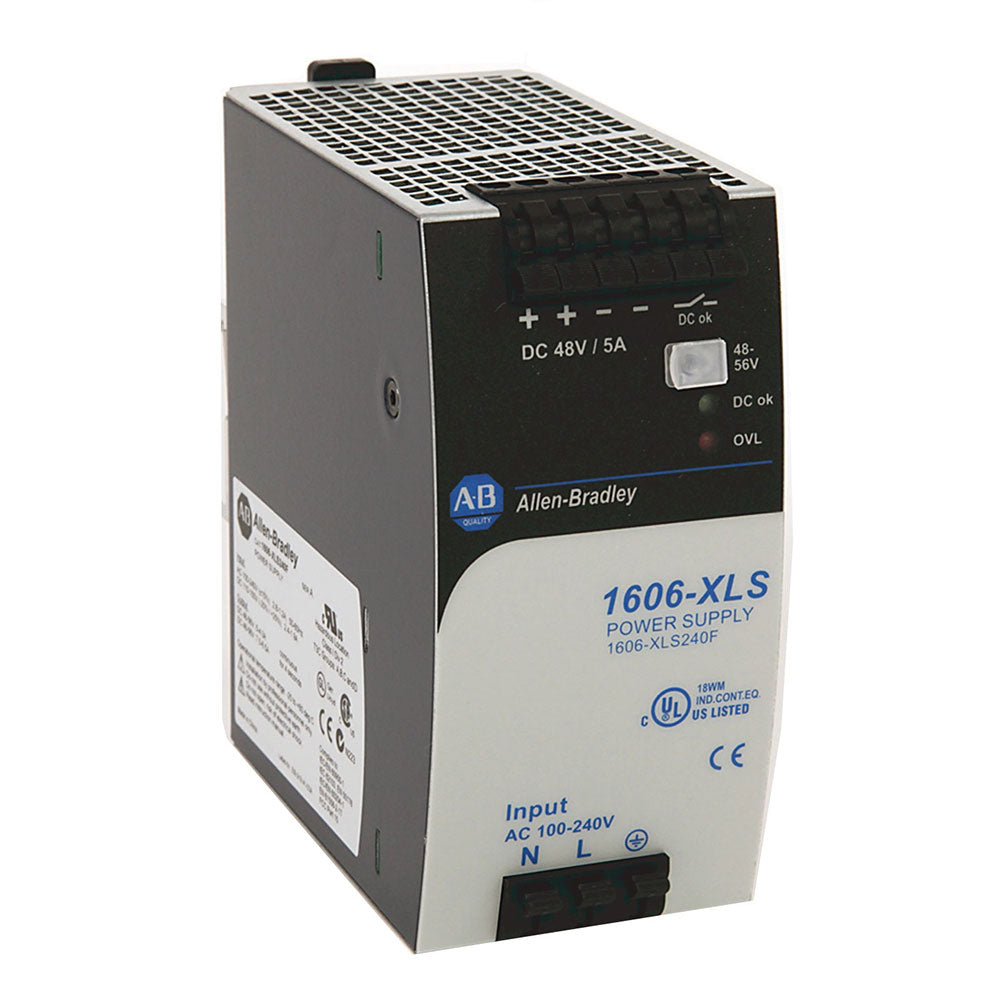

The Allen-Bradley 1606-XLS240F switched-mode power supply module is a compact power supply module form the XLS performance series that is built to provide power supply requirements to a wide variety of single-phase and 3-phase applications. The XLS performance series features a highly efficient and intelligent circuit design with long-life output capacitors, and they provide a 150% maximum power boost to handle even the toughest load start-ups. The 1606-XLS240F module is designed for single-phase applications, with input voltage ranges of 110 to 300 Volts DC and 120 to 240 Volts AC. This power supply module has a steady-state input current rating of 1.22 Amps at 230 Volts AC, and 2.8 Amps at 120 Volts AC. The 1606-XLS240F module an adjustable DC output rating, and it is adjustable from 48 to 56 Volts DC.

The 1606-XLS240F module has 5 Amps of continuous output current rating and a total output power of 240 Watts. The 1606-XLS240F module has a sufficient current reserve to power high power loads. This unit has an operational efficiency rating of 93.5% at 230 Volts AC and a displacement power factor of 0.98. The 1606-XLS240F module provides fast diagnostics via its front-panel LED light indicators that display the device status (overload status) and the terminal status (DC-OK). The 1606-XLS240F module offers built-in voltage transient protection and input surge protection for smooth operation, and it also provides immunity to electromagnetic emissions, making it suitable for use in nearly every industrial setting. The 1606-XLS240F module has a DC-OK relay contact with spring-clamp terminals that is easy to use and requires no extra tools for use. The 1606-XLS240F module has an operating temperature range of -25 to 60 degrees Celsius without de-rating and a storage temperature range of -40 to 85 degrees Celsius.
