Technical Specifications for 1734-OW4
| Manufacturer | Rockwell Automation |
| Brand | Allen-Bradley |
| Part Number/Catalog No. | 1734-OW4 |
| Manufacturer | Rockwell Automation |
| Series | POINT I/O |
| Brand | Allen-Bradley |
| Module Type | Digital Contact Module |
| Series | POINT I/O |
| Outputs | 4 N.O relay |
| Product Description | Four (4) channel Relay output module |
| POINTBus Current | 80 milliamps |
| No. of outputs | Four (4) Normally Open (N.O.) contact outputs |
| Power Dissipation, Max | 0.5 Watts |
| Output delay time, on to off, max | 26 ms |
| Thermal Dissipation | 1.7 BTU/hour |
| Contact resistance, initial | 30 m? |
| UPC | 10612598309846 |
| Leakage current, off-state output, max | 1.2 mA and bleed resistor through snubber circuit @ 240V AC |
| Power dissipation, max | 0.5 W |
| Thermal dissipation, max | 1.7 BTU/hr |
| Terminal Base | 1734-TB, 1734-TBS, 1734-TOP, or 1734-TOPS |
| Mounting type | DIN Rail |
| Enclosure | None (open-style) |
| Operating temperature | -20…55 degrees C (-4…131 degrees F) |
| Nonoperating temperature | -40…85 degrees C (-40…185 degrees F) |

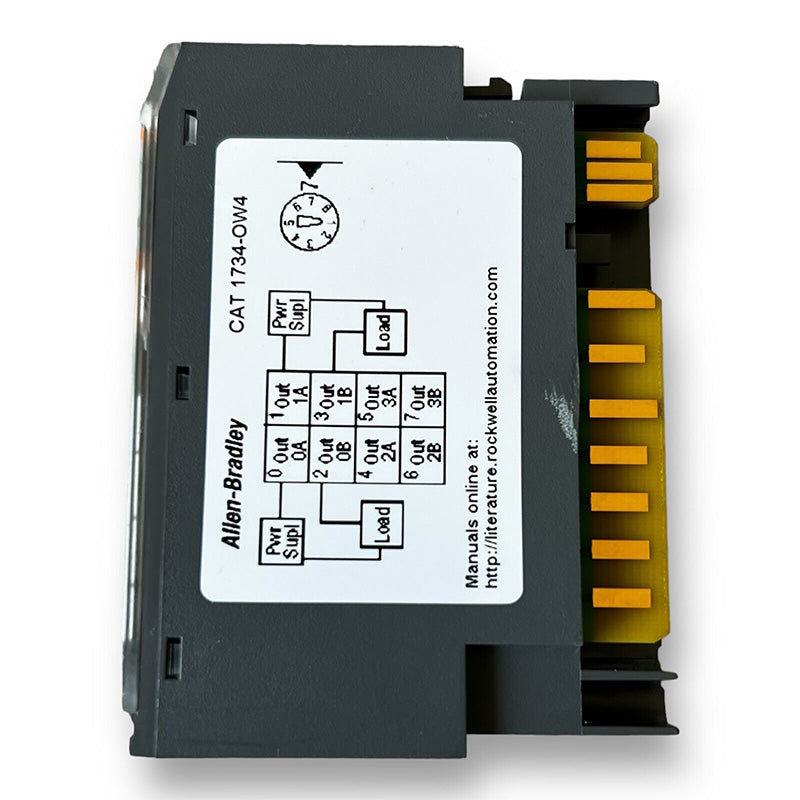

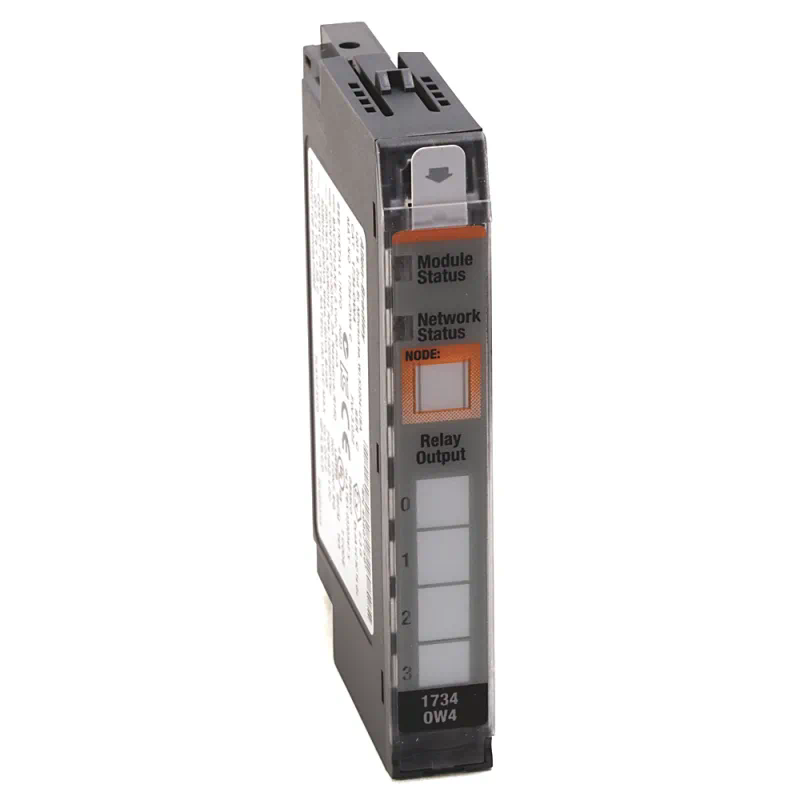

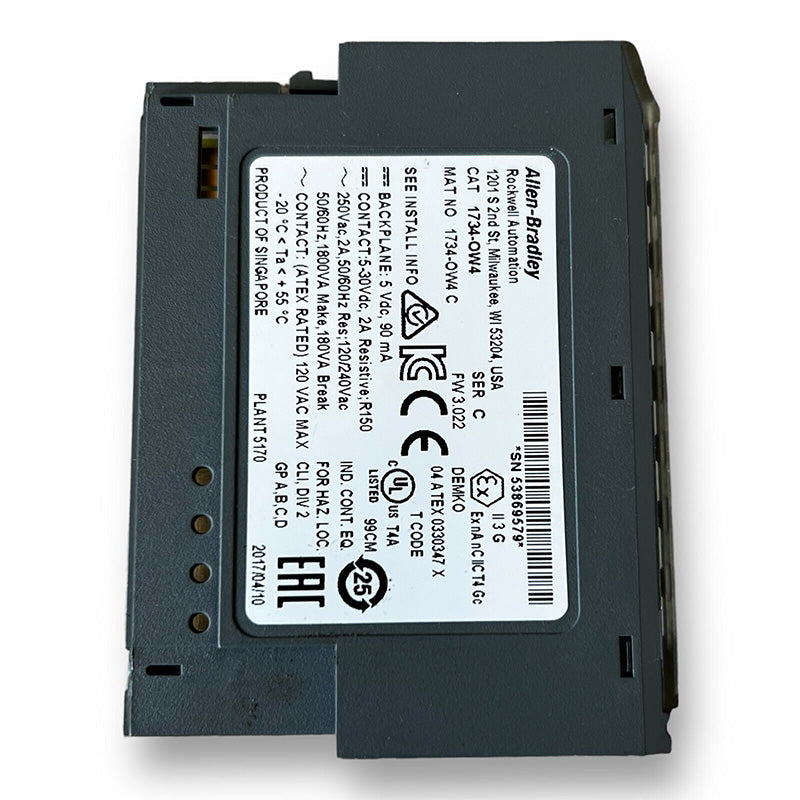

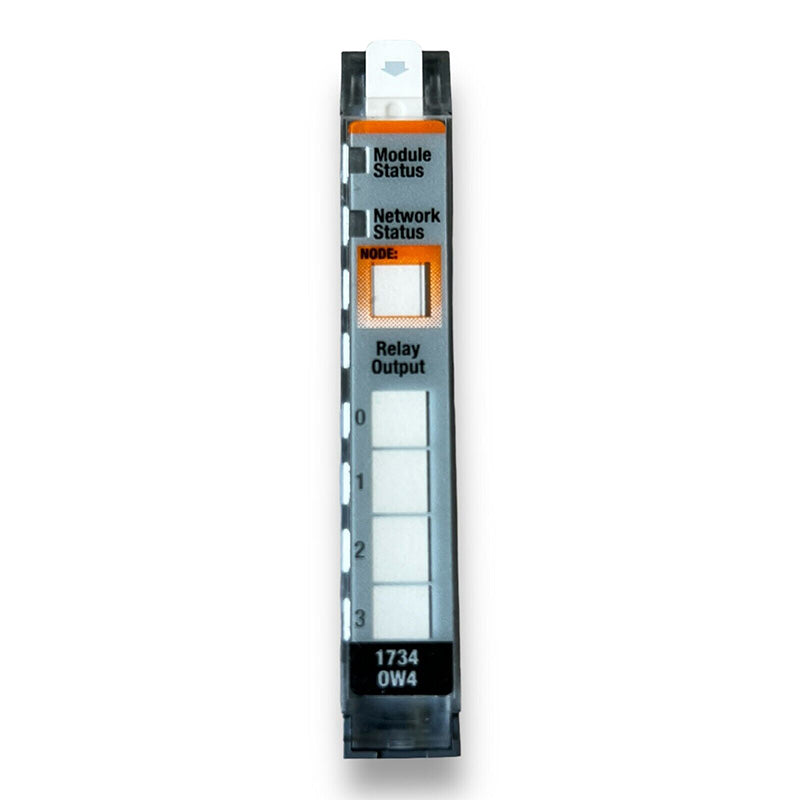

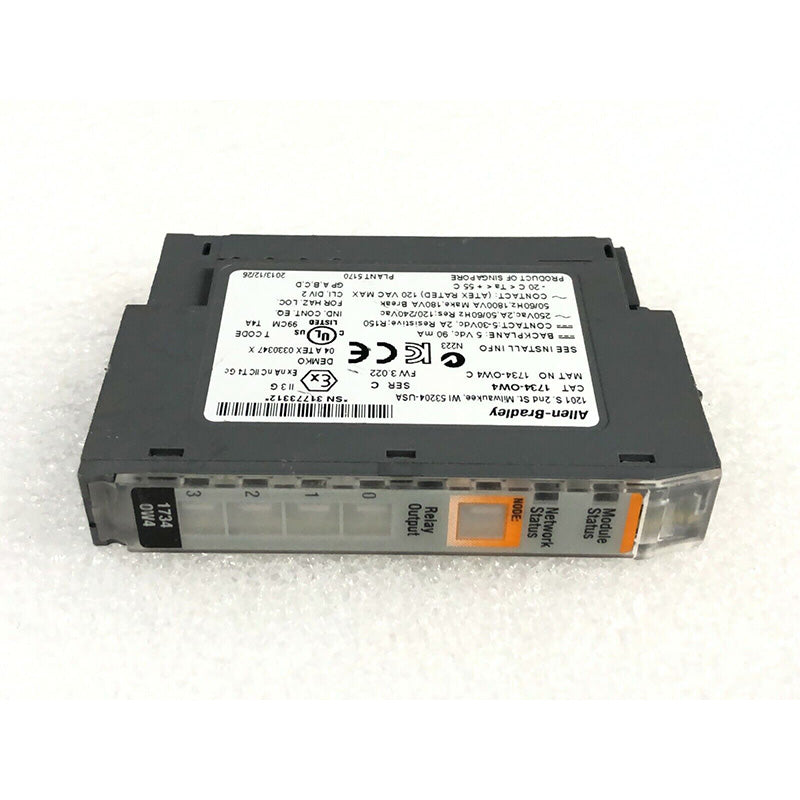

About 1734-OW4
The Allen-Bradley 1734-OW4 is a POINT O/I module. This module is a discrete output module with Four (4) Single Pole, Single Throw (SPST) Normally Open (N.O.) contacts. These contact outputs are voltage-free contacts and supports operating with 5-30 VDC; 120 VAC and 250 VAC voltages. It has a compact and small design, ideally used for implementing distributed I/O architecture and supports installation to a DIN rail and couples with an appropriate terminal base for wiring of signal an input power with applicable bases such as 1734-TB, 1734-TBS, 1734-TOP, or 1734-TOPS. When mounting
The 1734-OW4 contact outputs exhibits a signal transition delay from ON to OFF of 26 ms with initial contact resistance of 30 m?. To operate this device, it must be allocated with 80 mA POINTBus current while the module’s power dissipation is 0.5 W and Thermal Dissipation of 1.7 BTU/Hr.
The 1734-OW4 supports any available POINT I/O communication adapter such as Ethernet, ControlNet and ProfiBus adapters. These adapters enable the 1734-OW4 to receive commands from partner controllers such as ControlLogix and CompactLogix and implement the automation sequence. Additionally, it can be mixed with any other point I/O modules to achieve the required I/O.
The 1734-OW4 has operating temperature requirement of -20…55 degrees C (-4…131 degrees F) and non-operating temperature of -40…85 degrees C (-40…185 degrees F) while the relative humidity of 5-95%, non-condensing.
The Allen-Bradley 1734-OW4 POINT I/O 4 Relay Output Module is an electronic module which has 4 open electromechanical relay outputs with a 20ms output delay time from ON to OFF. It has a maximum OFF-State leakage current of 1.2 mA @ 240V AC via a bleed resistor. The 1734-OW4 has a contact resistance of 30m ?, with a 0.5W power dissipation at 1.7 BTU/hr equivalent thermal dissipation. Its POINT BUS current is 80mA with a backplane power of 5V DC, and it can be installed on any of the 4 1734 base terminal modules.
The 1734-OW4 is mounted on a DIN rail using the terminal base screws as determined by the base block. It has a contact rating of 120-240V AC at 2A, and an isolation voltage of 250V tested at 2550V DC for 60s between the field and system and between the contacts set. The 1734-OW4 has a maximum switching frequency of 1 operation per 3 sec., and it is load-dependent, with a 100,000-cycle load-dependent electrical contact life expectancy. It is designated with the T4 and T4A temperature code, and the module has an open-style enclosure type. It has a single ON signal wire category with 0.25-2.5mm2 (22-14 AWG) solid and stranded copper wire rated at 85 deg. C. The 1734-OW4 has an operating temperature between -20 and 55 deg. C (-4 and 131 deg. F) at 5-95% non-condensing humidity. It has an operational shock rating of 30G and at a vibration of 5G (10-500Hz). Each 1734-OW4 Digital Contact Module’s output is rated 240VDC RMS at 2A and the current is load-dependent. It has 4 N.O. relay outputs and a POINTBus current of 80 milliamps with a maximum Power Dissipation of 0.5 Watts.
The 1734-OW4 contact outputs exhibits a signal transition delay from ON to OFF of 26 ms with initial contact resistance of 30 m?. To operate this device, it must be allocated with 80 mA POINTBus current while the module’s power dissipation is 0.5 W and Thermal Dissipation of 1.7 BTU/Hr.
The 1734-OW4 supports any available POINT I/O communication adapter such as Ethernet, ControlNet and ProfiBus adapters. These adapters enable the 1734-OW4 to receive commands from partner controllers such as ControlLogix and CompactLogix and implement the automation sequence. Additionally, it can be mixed with any other point I/O modules to achieve the required I/O.
The 1734-OW4 has operating temperature requirement of -20…55 degrees C (-4…131 degrees F) and non-operating temperature of -40…85 degrees C (-40…185 degrees F) while the relative humidity of 5-95%, non-condensing.
The Allen-Bradley 1734-OW4 POINT I/O 4 Relay Output Module is an electronic module which has 4 open electromechanical relay outputs with a 20ms output delay time from ON to OFF. It has a maximum OFF-State leakage current of 1.2 mA @ 240V AC via a bleed resistor. The 1734-OW4 has a contact resistance of 30m ?, with a 0.5W power dissipation at 1.7 BTU/hr equivalent thermal dissipation. Its POINT BUS current is 80mA with a backplane power of 5V DC, and it can be installed on any of the 4 1734 base terminal modules.
The 1734-OW4 is mounted on a DIN rail using the terminal base screws as determined by the base block. It has a contact rating of 120-240V AC at 2A, and an isolation voltage of 250V tested at 2550V DC for 60s between the field and system and between the contacts set. The 1734-OW4 has a maximum switching frequency of 1 operation per 3 sec., and it is load-dependent, with a 100,000-cycle load-dependent electrical contact life expectancy. It is designated with the T4 and T4A temperature code, and the module has an open-style enclosure type. It has a single ON signal wire category with 0.25-2.5mm2 (22-14 AWG) solid and stranded copper wire rated at 85 deg. C. The 1734-OW4 has an operating temperature between -20 and 55 deg. C (-4 and 131 deg. F) at 5-95% non-condensing humidity. It has an operational shock rating of 30G and at a vibration of 5G (10-500Hz). Each 1734-OW4 Digital Contact Module’s output is rated 240VDC RMS at 2A and the current is load-dependent. It has 4 N.O. relay outputs and a POINTBus current of 80 milliamps with a maximum Power Dissipation of 0.5 Watts.
FAQ for 1734-OW4
Are the contact outputs isolated from each other on this Digital Contact Module?
Yes, the contact outputs are isolated from each other on the 1734-OW4 POINT Digital Contact Module.
Do I need to configure the 1734-OW4 Digital Contact module to match the baud rates of existing devices on the network?
No, 1734-OW4 Digital Contact Module has an auto-baud feature, which automatically matches the baud rate of existing devices on the network. Therefore, no manual configuration is necessary.
What is the price of 1734-OW4 POINT Digital Contact Module?
Submit a quote request, send us an email for our best price.
Where can I find repair services for the 1734-OW4 POINT Digital Contact Module?
offers repair services for the 1734-OW4 POINT Digital Contact Module. For more information or to request a repair quote, please contact us.
1. What is the output contact from of the 1734-OW4?
The 1734-OW4 has Four (4) Normally Open (N.O.) contacts
2. What are compatible wiring base assemblies for use with the 1734-OW4?
The 1734-OW4 requires use of 1734-TB, 1734-TBS, 1734-TOP, or 1734-TOPS terminal base.
3. Does the 1734-OW4 capable of acting as distributed I/O component of ControlLogix PLC?
Yes. It is also compatible with CompactLogix and other previous controller systems.
Technical Description of 1734-OW4
The Allen-Bradley 1734-OW4 is a POINT I/O Digital Contact Module. It has 4 N.O relay Outputs and a POINTBus Current of 80 milliamps with a Power Dissipation, Max of 0.5 Watts.
